Mitsubishi
›
2002
›
Eclipse GT, Standard
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Power Steering Gear Box Assembly
›
Lubrication And Sealing Points
›
Notes
Lubrication And Sealing Points: Notes

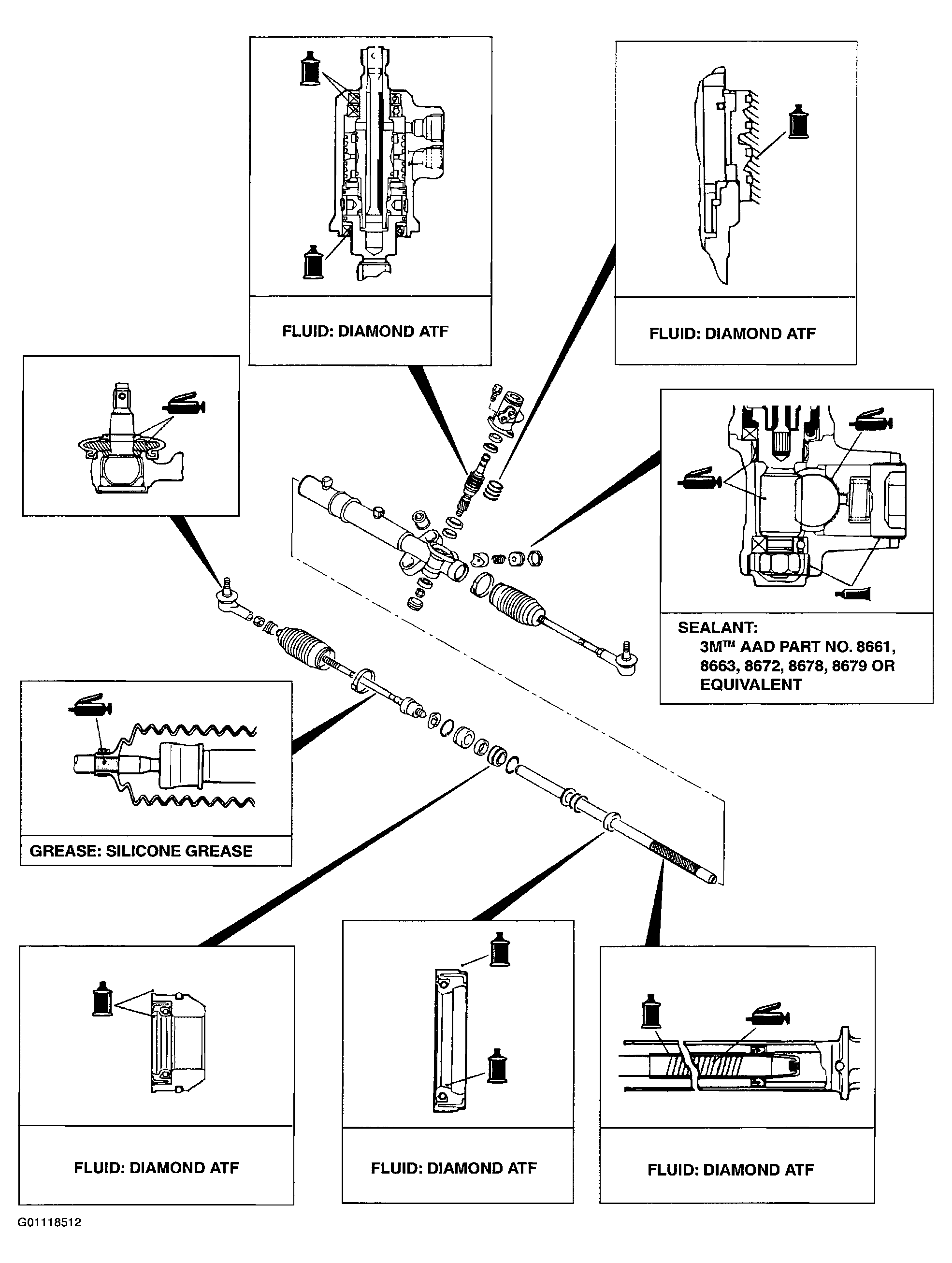

Fig 1: Identifying Lubrication & Sealing Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
