Configuration Of Functions

For adjustment procedures, see Fig 1.

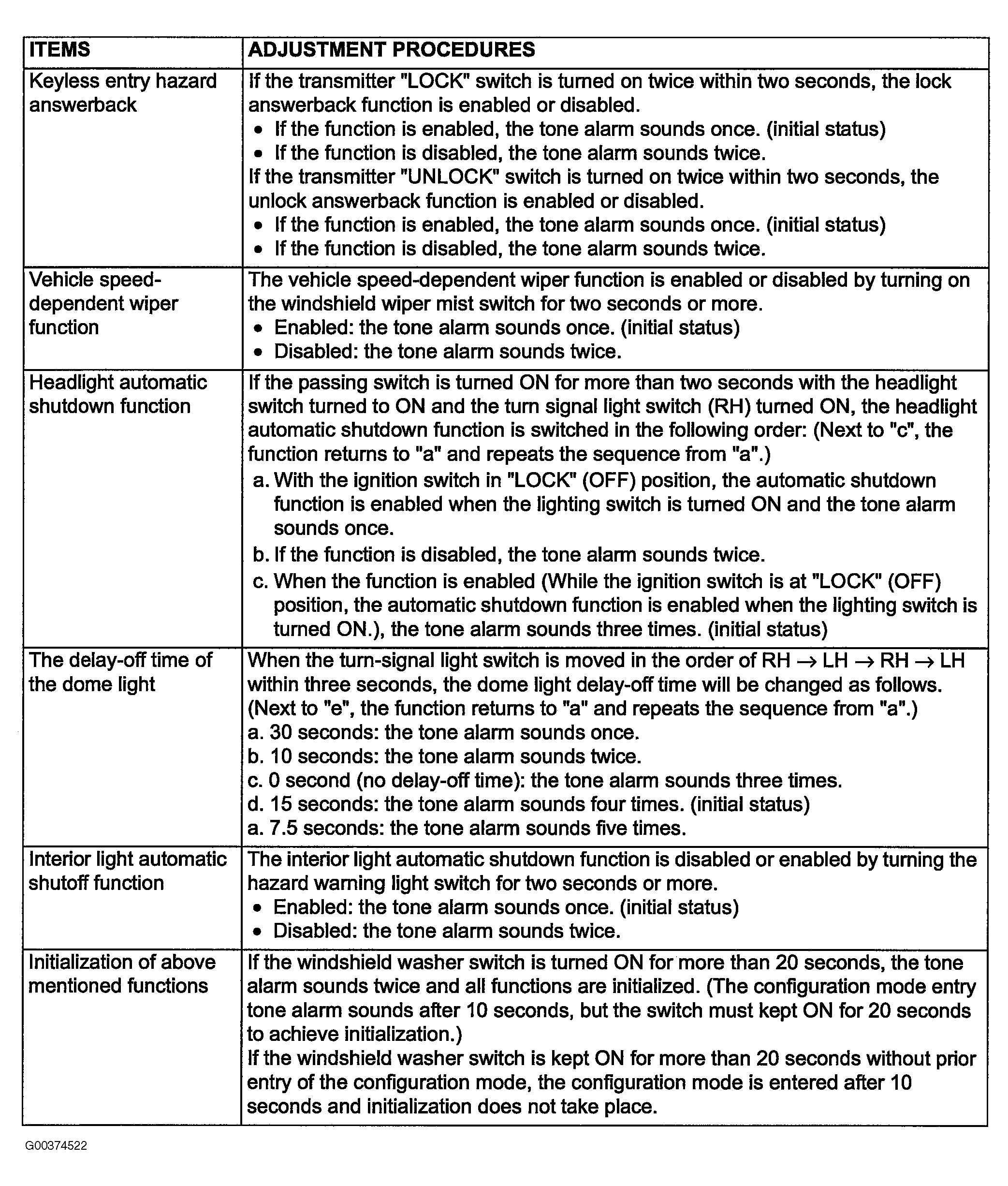

Fig 1: Configuration Of Functions
G00374522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
