How To Connect SWS Monitor

CAUTION: Always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the SWS monitor kit and scan tool MB991502.

Remove the steering column cover.
Remove the steering column switch connector.
Connect the SWS monitor harness (for column-ECU). See Fig 1.

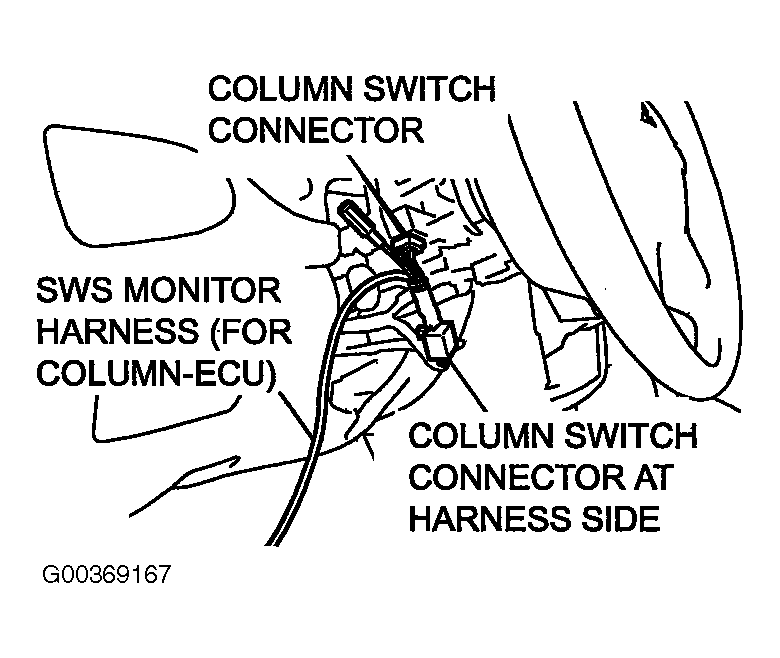

Fig 1: Connecting SWS Monitor Kit To Column Switch Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
