Power Window Main Switch Check

Fig 1: Identifying Power Window Main Switch Terminals (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Power Window Main Switch Terminals (Eclipse Spyder)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

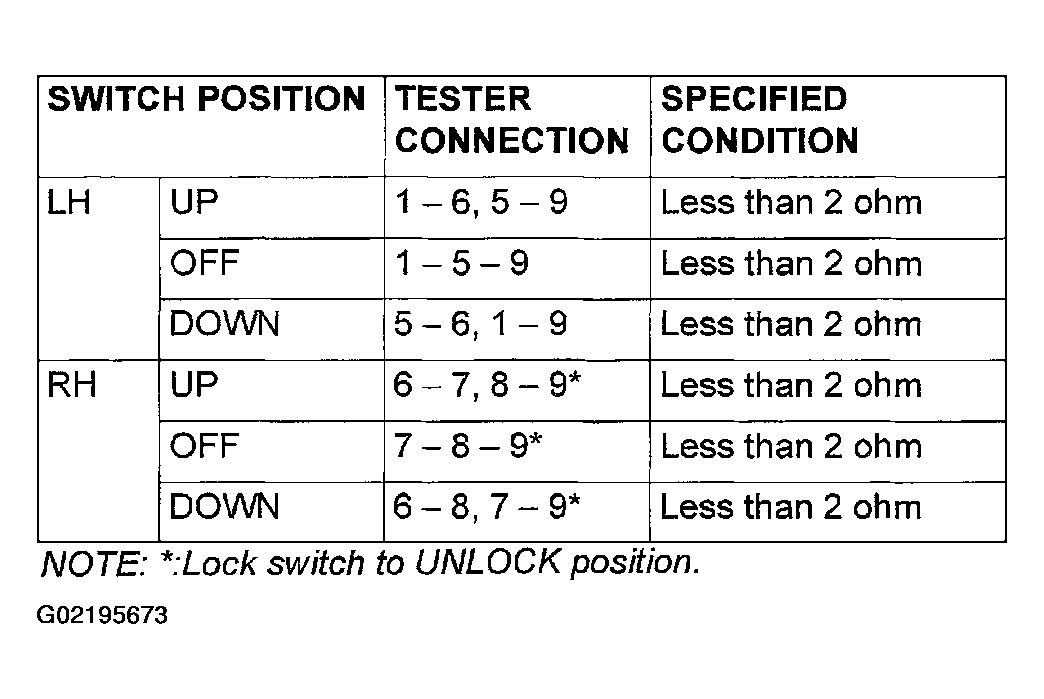

Fig 3: Power Window Main Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
