Service Specifications

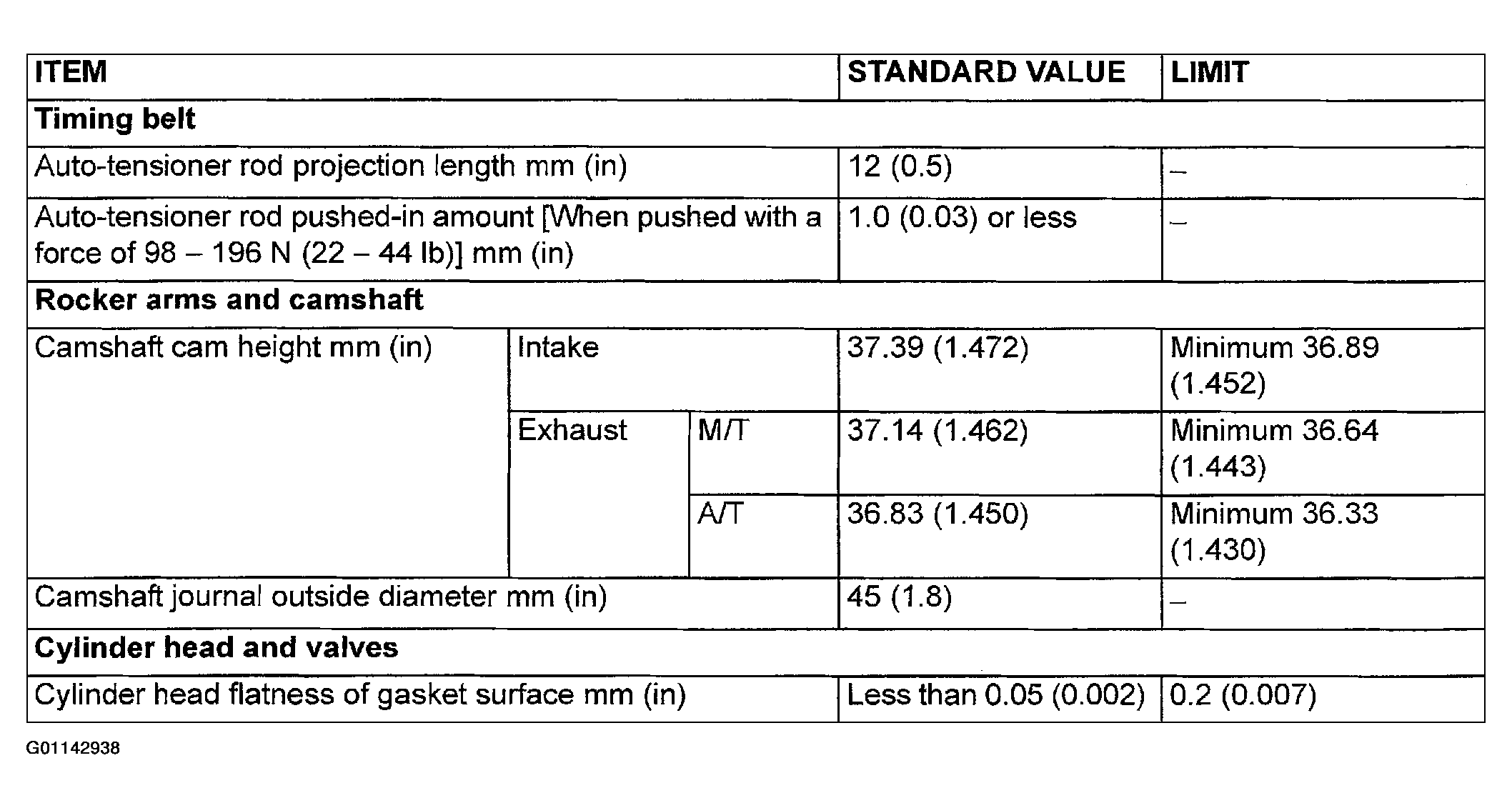

Fig 1: Service Specifications (1 of 3)
G01142938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

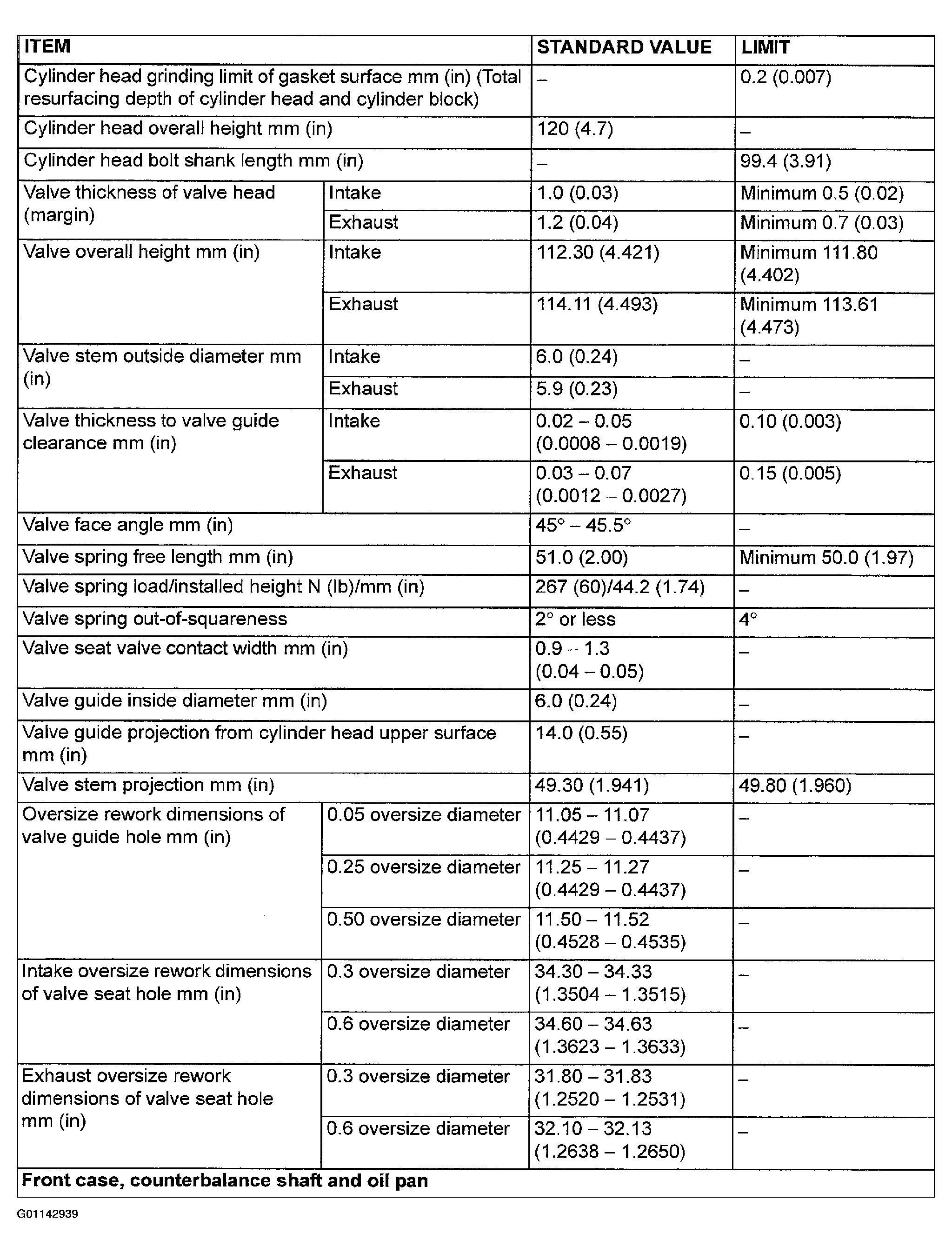

Fig 2: Service Specifications (2 of 3)
G01142939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

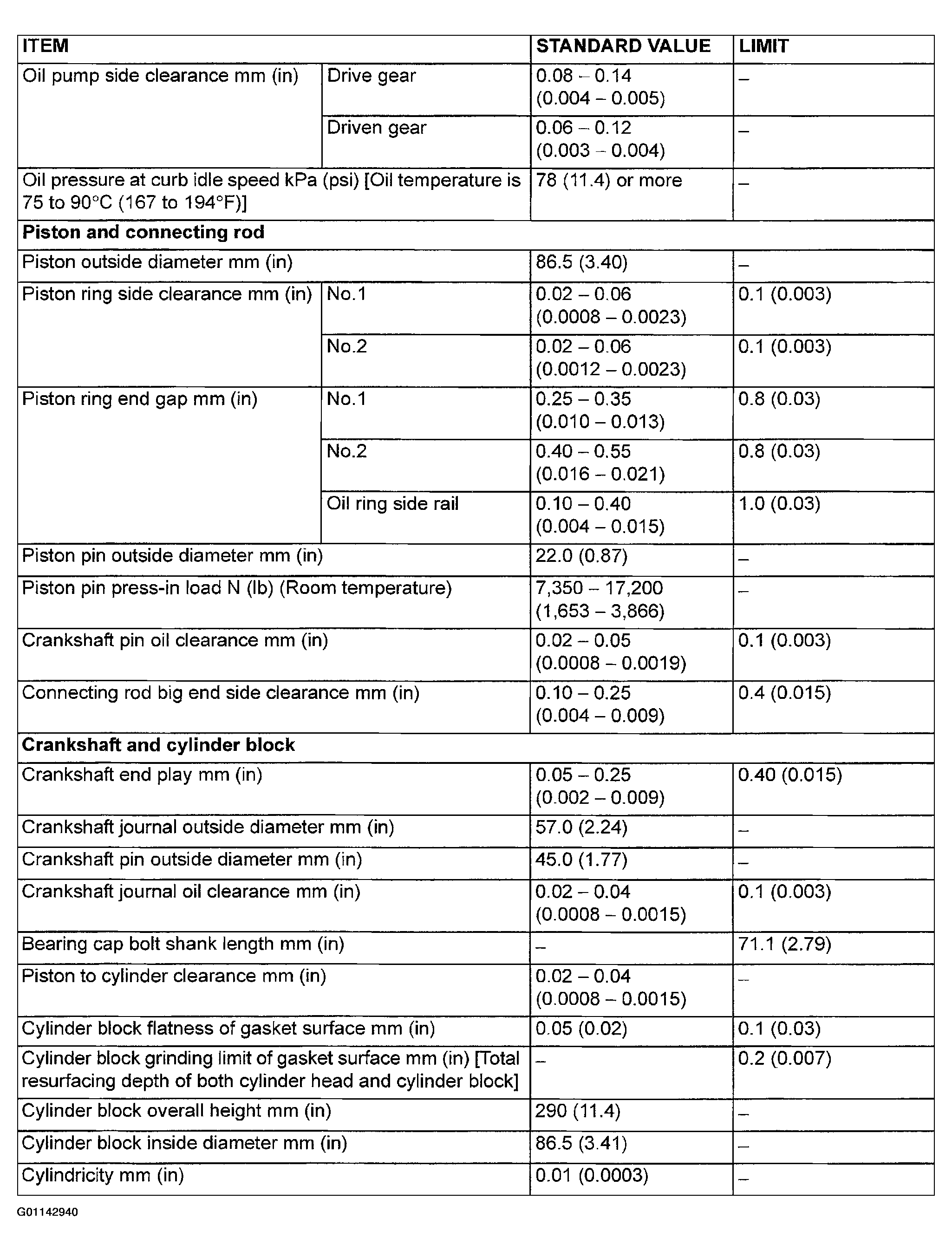

Fig 3: Service Specifications (3 of 3)
G01142940Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
