Disassembly And Assembly: Notes

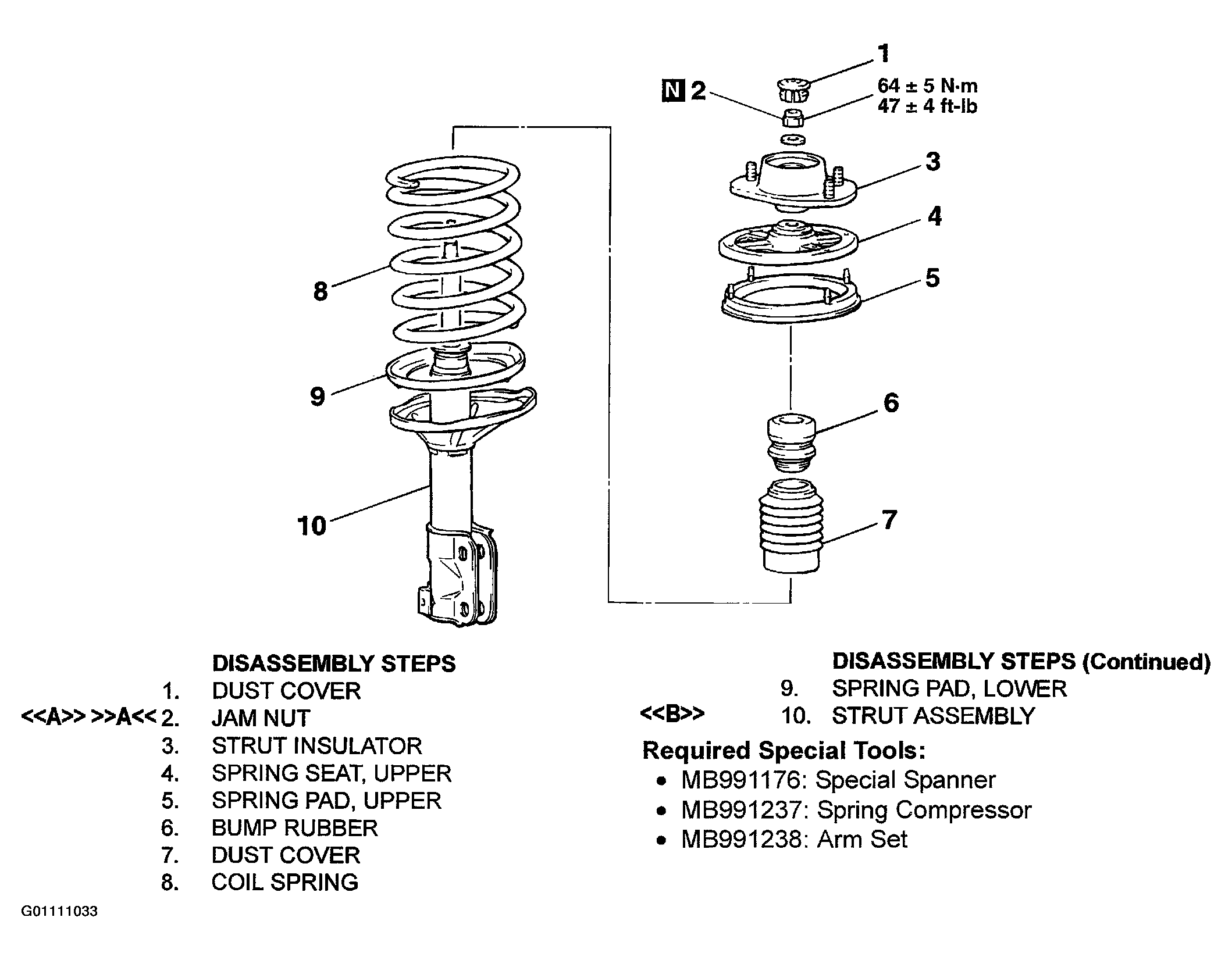

Fig 1: Strut Disassembly & Assembly

G01111033

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
