Notes
Removal And Installation: Notes
CAUTION:
For vehicles with ABS, be careful when handling the pole piece at the tip of the speed sensor so as not to damage it by striking against other parts.

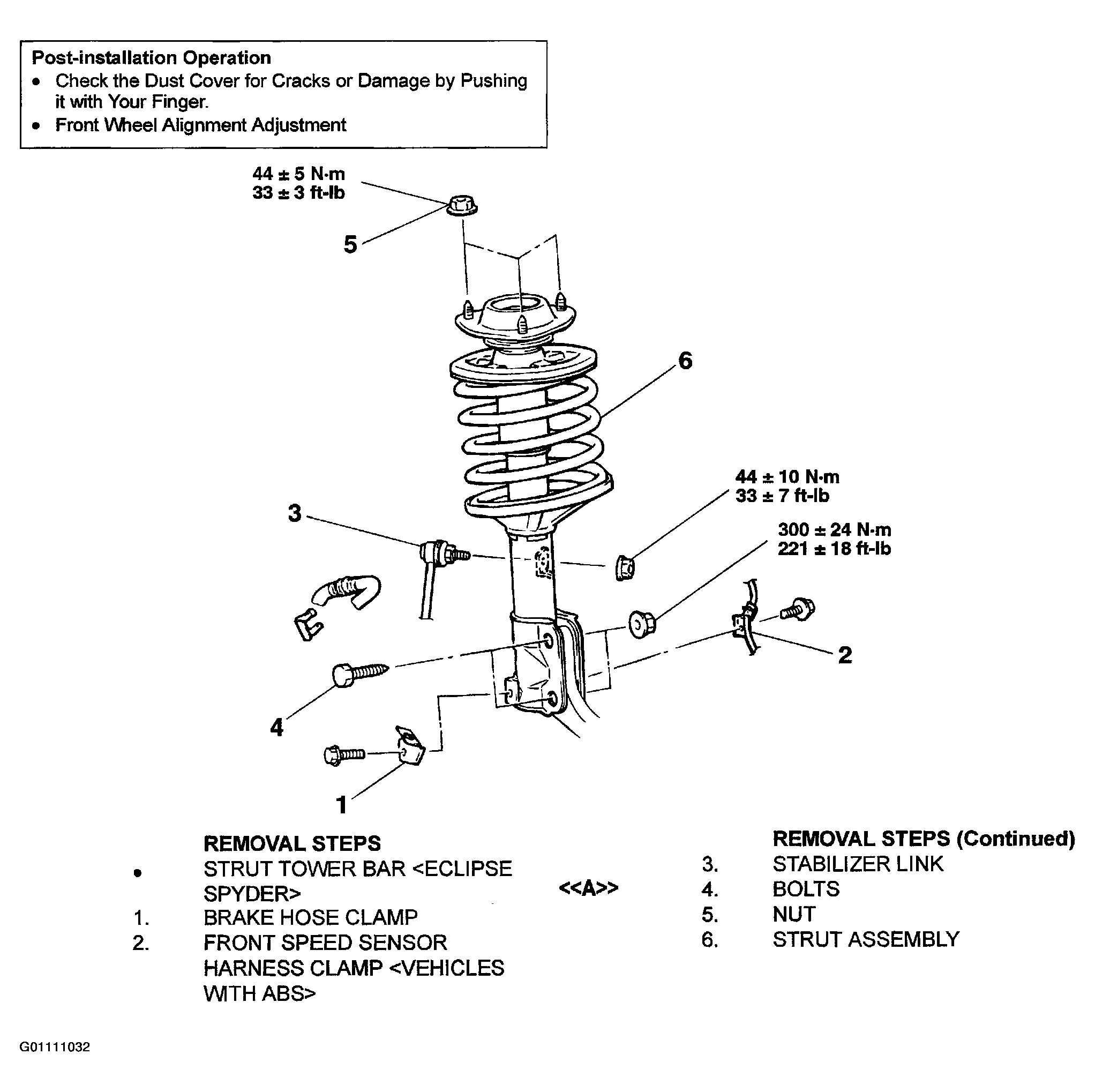

Fig 1: Removing & Installing Strut Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
