Removal And Installation: Notes

CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

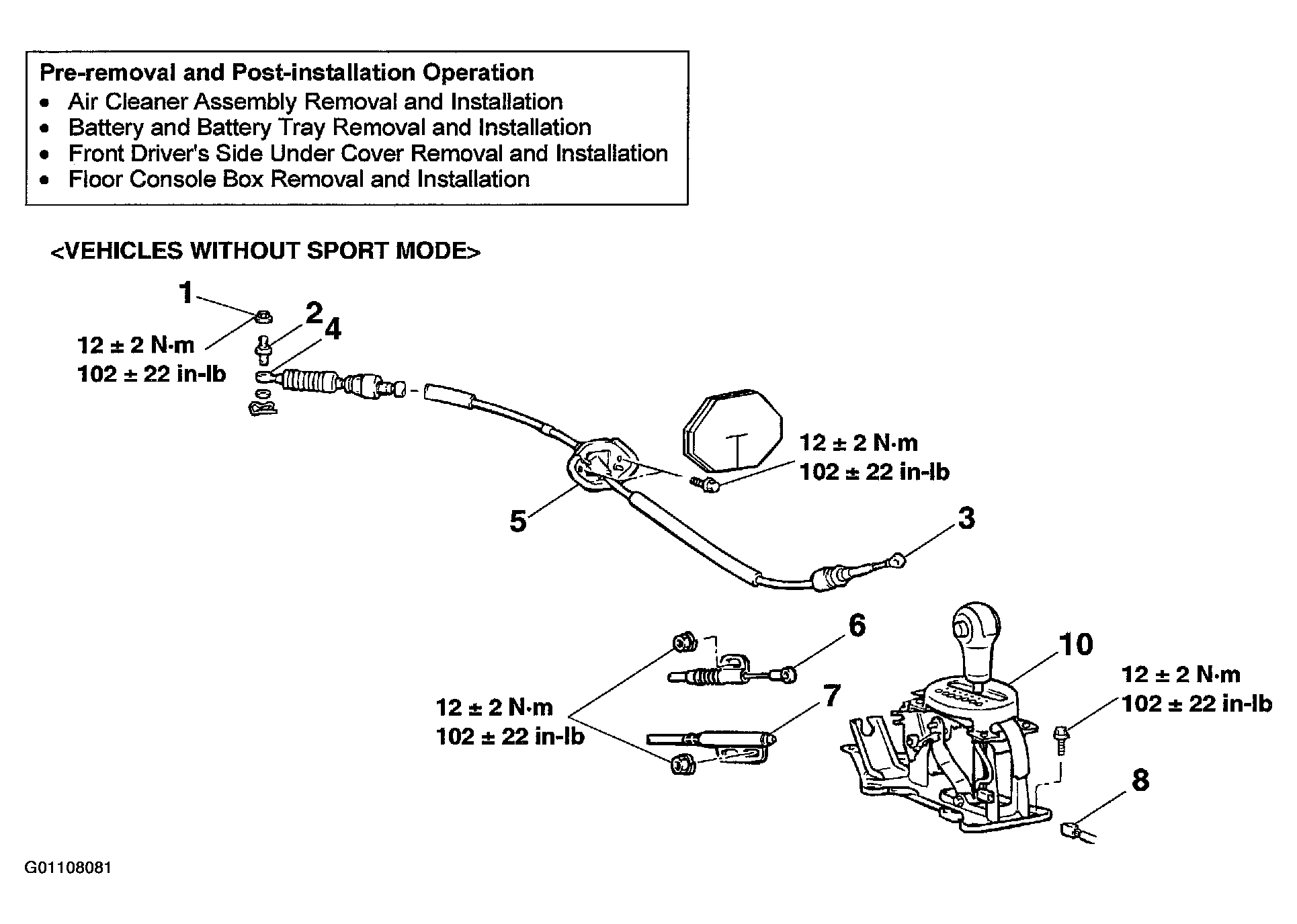

Fig 1: Removing & Installing Transaxle Control (1 Of 2)
G01108081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

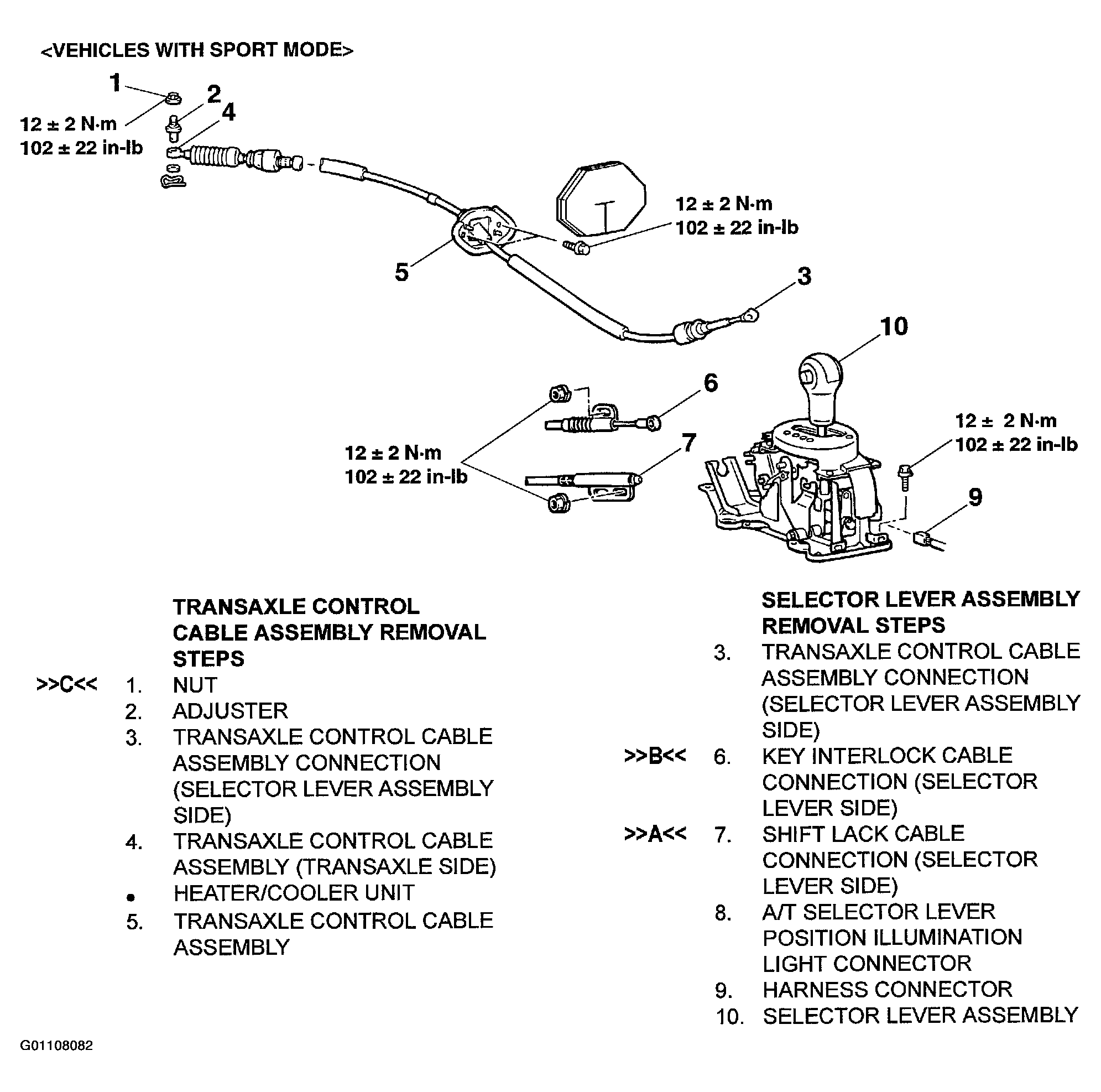

Fig 2: Removing & Installing Transaxle Control (2 Of 2)
G01108082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
