Adjust For Compass Variance

With showing the compass, keep pressing "M" switch for two second or more.
The current zone umber will appear upon release.

Fig 1: Adjusting For Compass Variance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Find current location and variance zone number on the zone map.

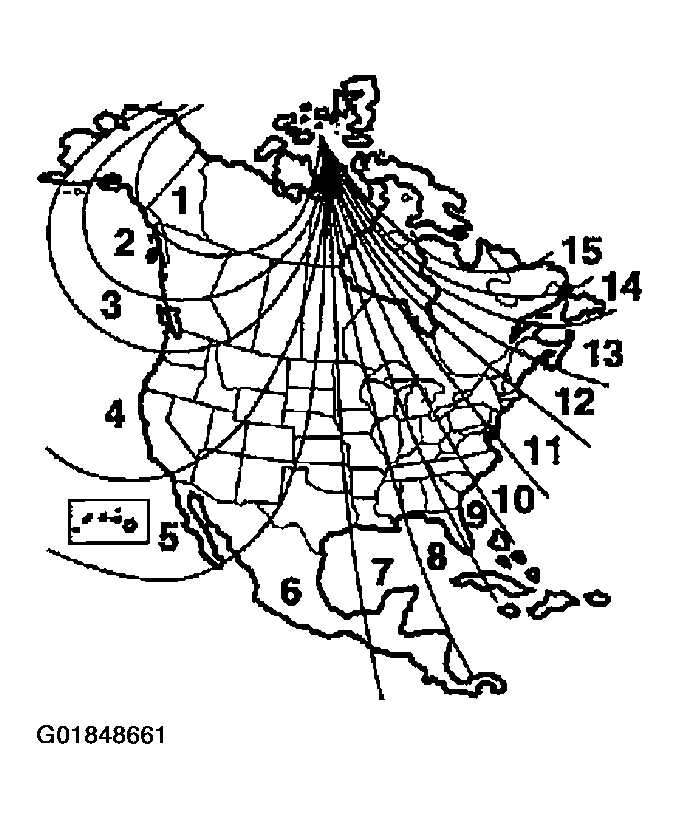

Fig 2: Compass Variance Zone Map
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press the "H" switch repeatedly until the new zone number.

Fig 3: Changing Zone Number
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Pressing the "M" switch will exit zone entry mode. This area code number should remain in the battery off. If the compass deviates from the correct indication soon after repeated adjustment, refer to INSPECTION PROCEDURE 3: The Compass is not Correct. .

NOTE: Do not install the ski rack, antenna, etc., which are attached to the vehicle by means of a magnet. They affect the operation of compass.

NOTE: The compass may not indicate the correct compass direction in the places shown below:

NOTE: The compass returns to the correct compass direction vehicle moves to an area where the geomagnetism is stabilized.
