Disassembly And Assembly: Notes

WARNING: Do not disassemble a front seatback assembly with built-in side air bag module.

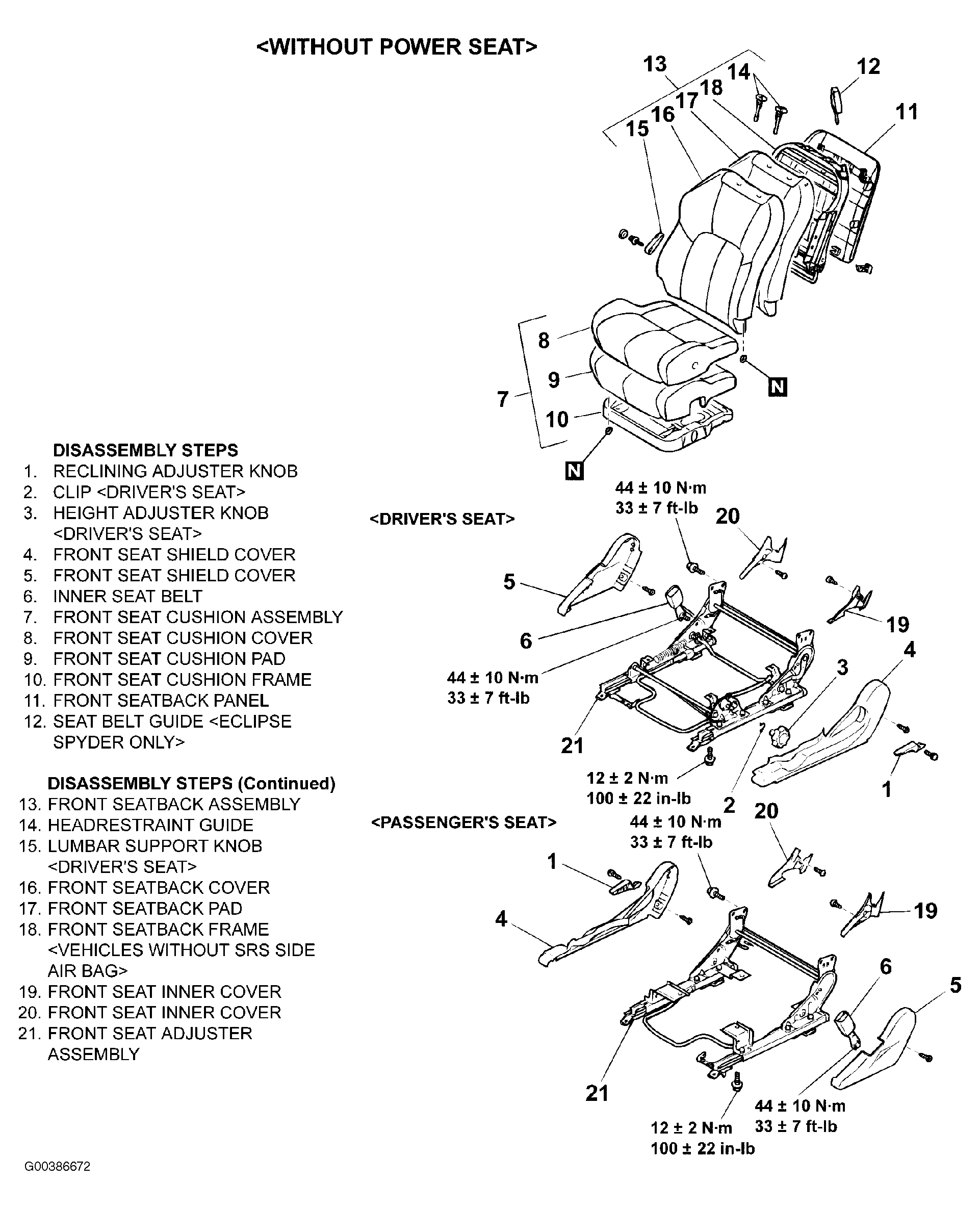

Fig 1: Front Seat Disassembly & Assembly (Without Power Seat)
G00386672Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

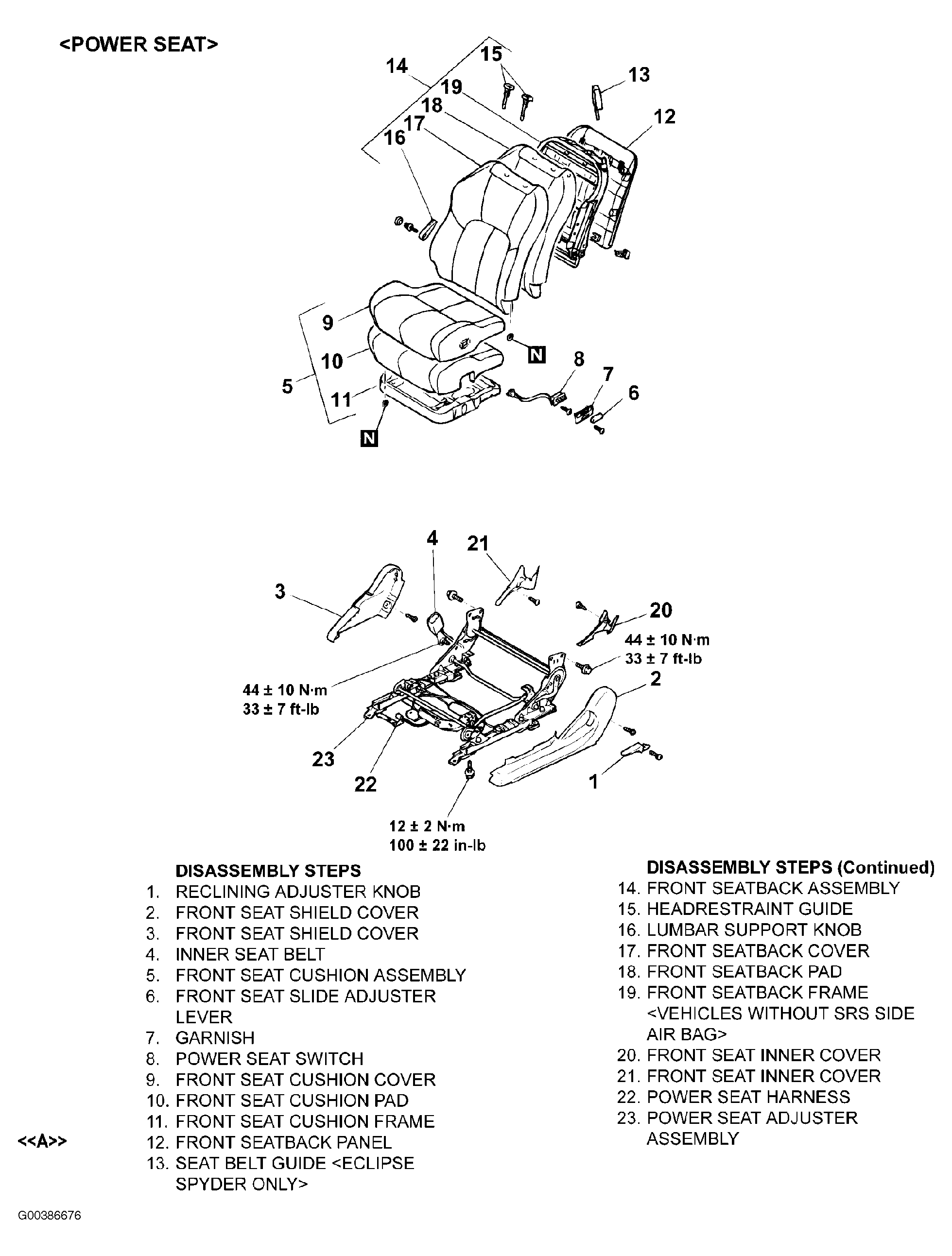

Fig 2: Front Seat Disassembly & Assembly (With Power Seat)
G00386676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
