Notes
Removal And Installation: Notes
WARNING:
Before removing a seat equipped with a side air bag module, refer to
AIR BAG SAFETY PRECAUTIONS
.

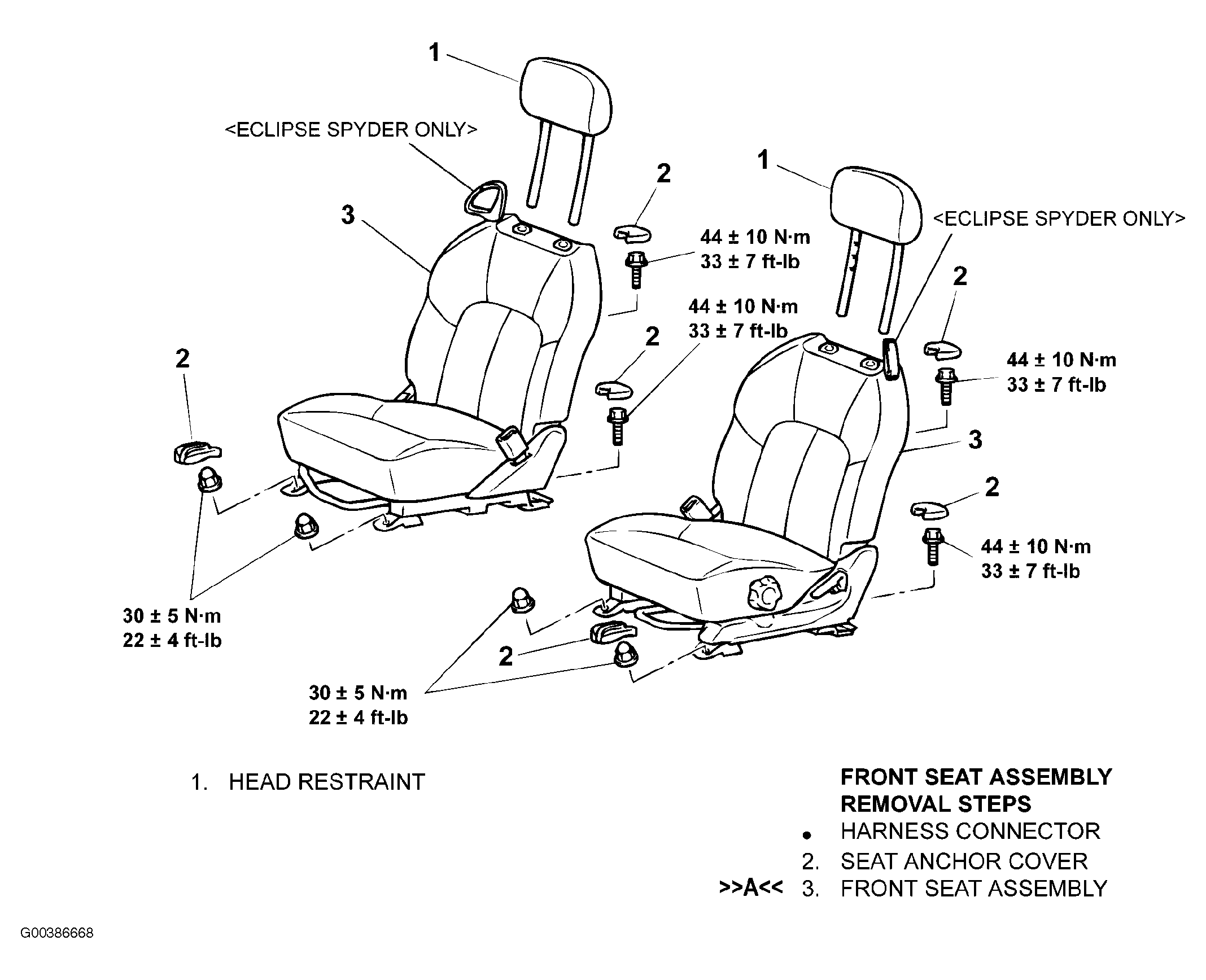

Fig 1: Removing & Installing Front Seat Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
