Special Tools
Special Tools

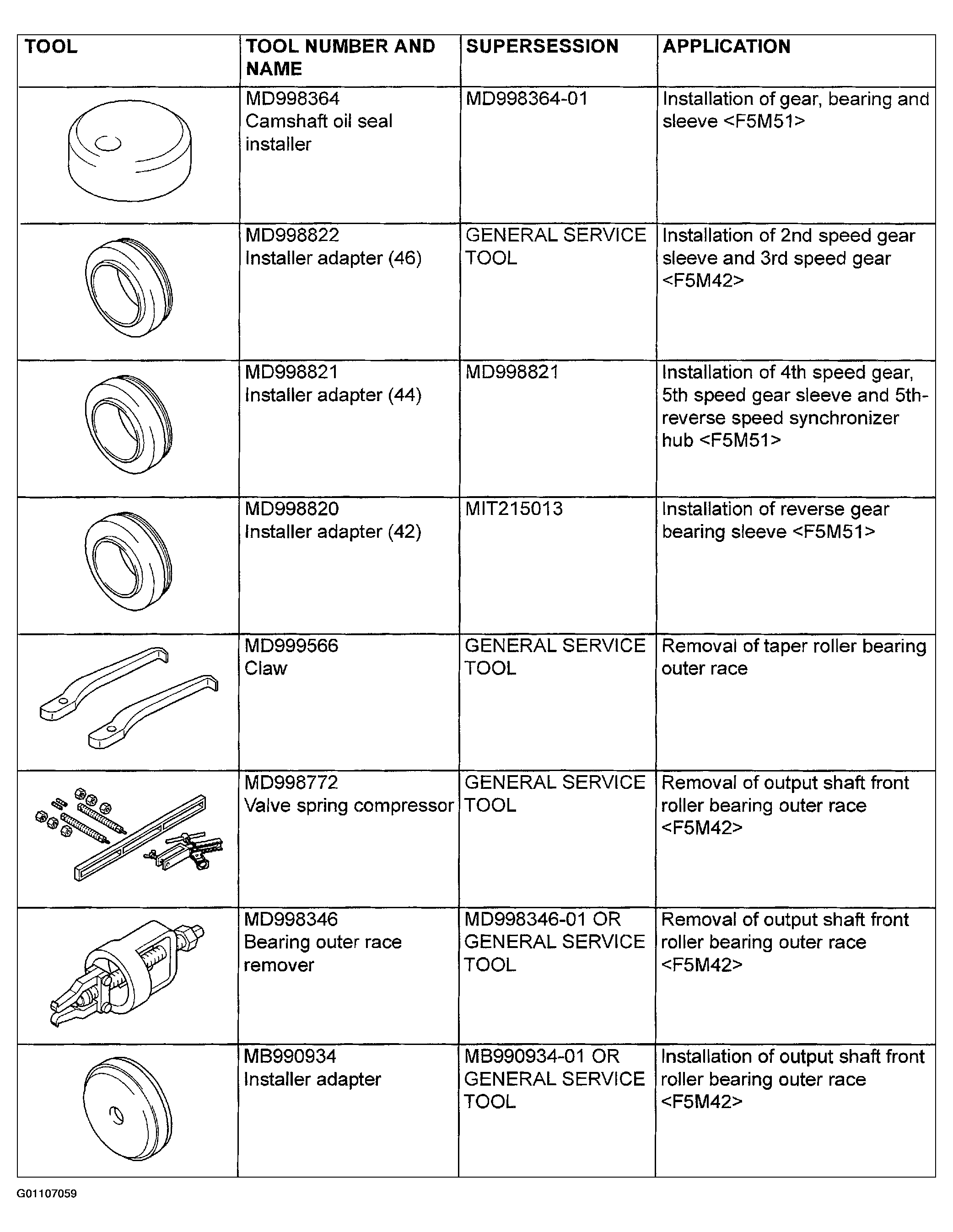

Fig 1: Identifying Special Tools (1 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

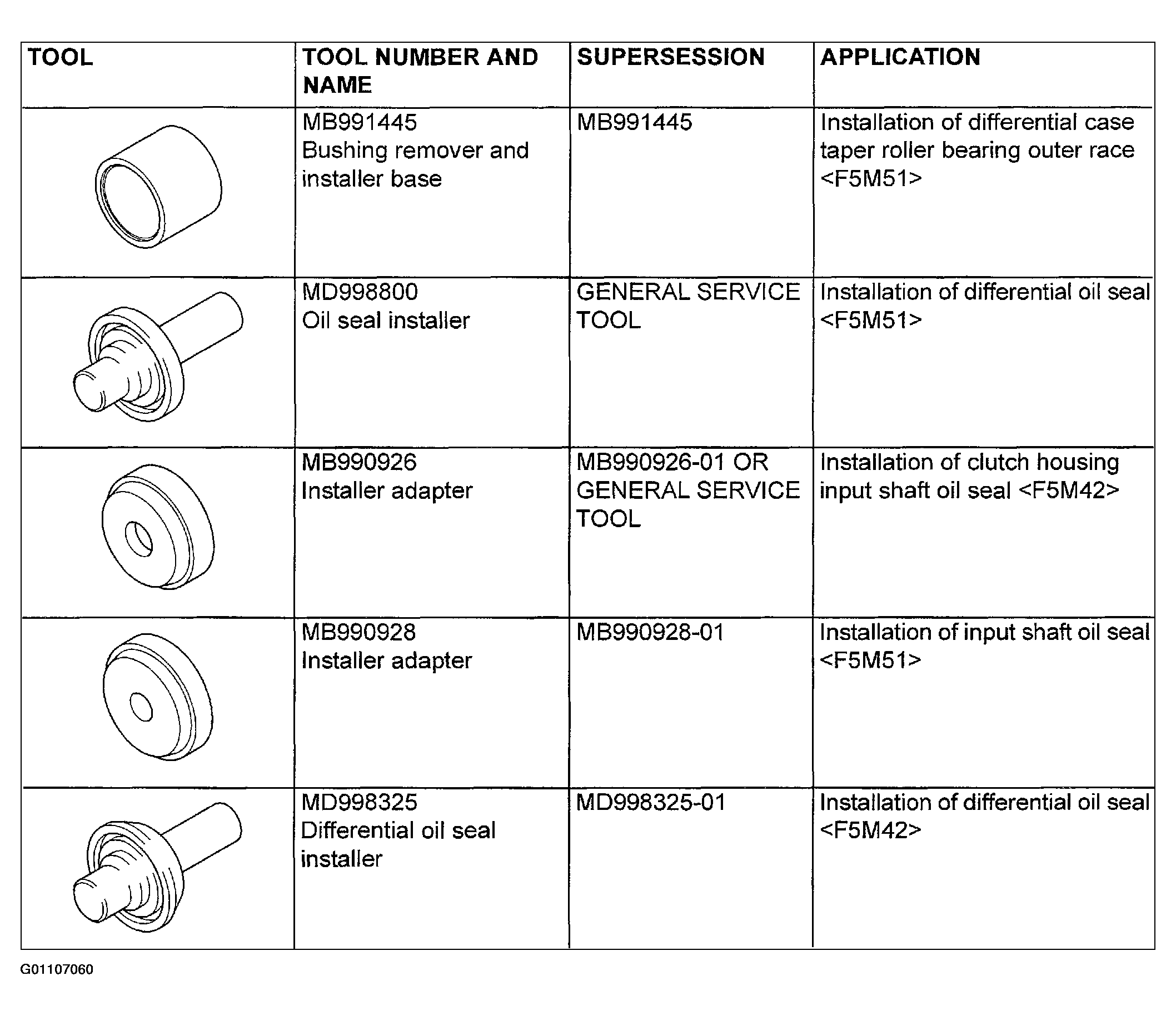

Fig 2: Identifying Special Tools (2 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

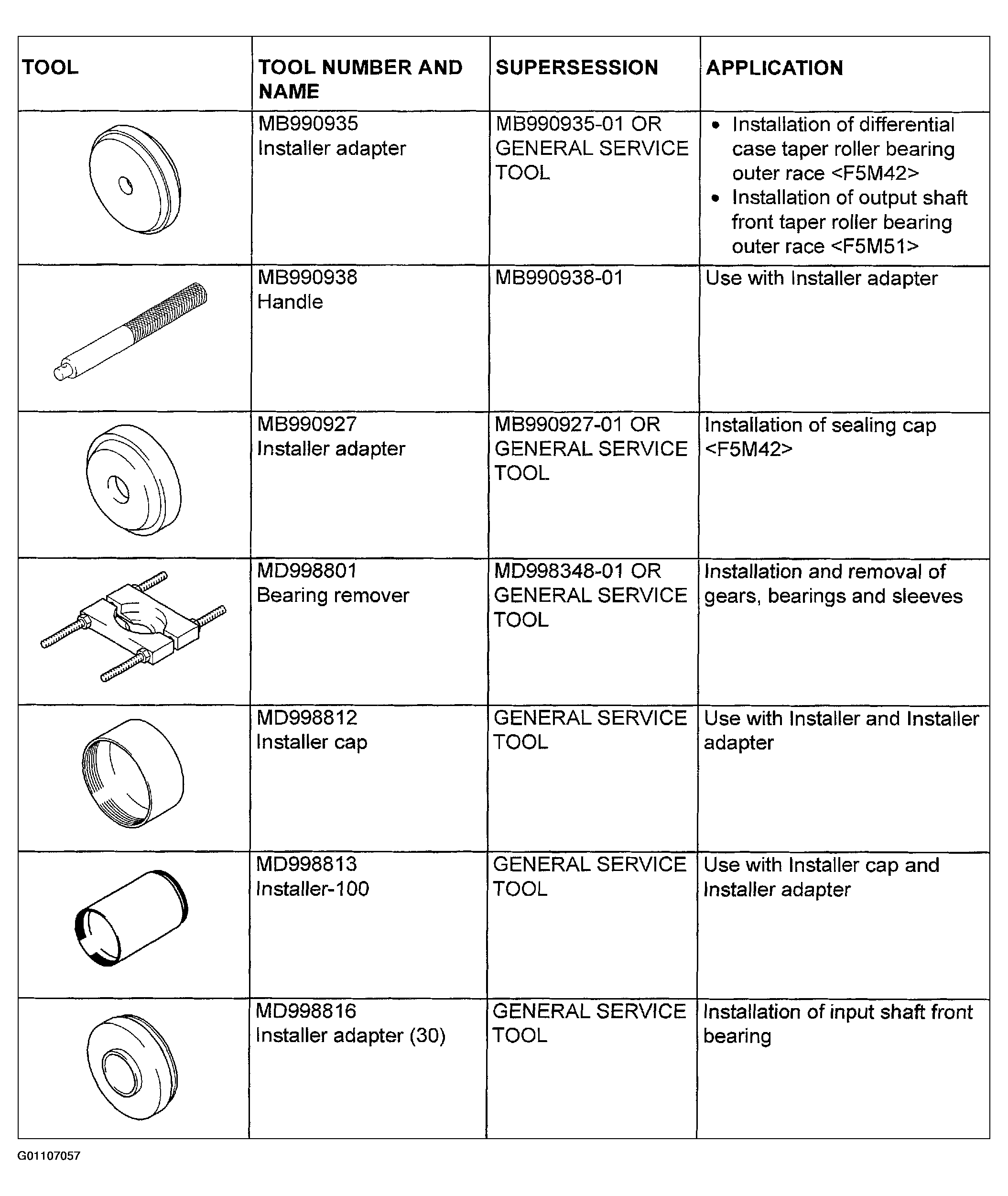

Fig 3: Identifying Special Tools (3 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

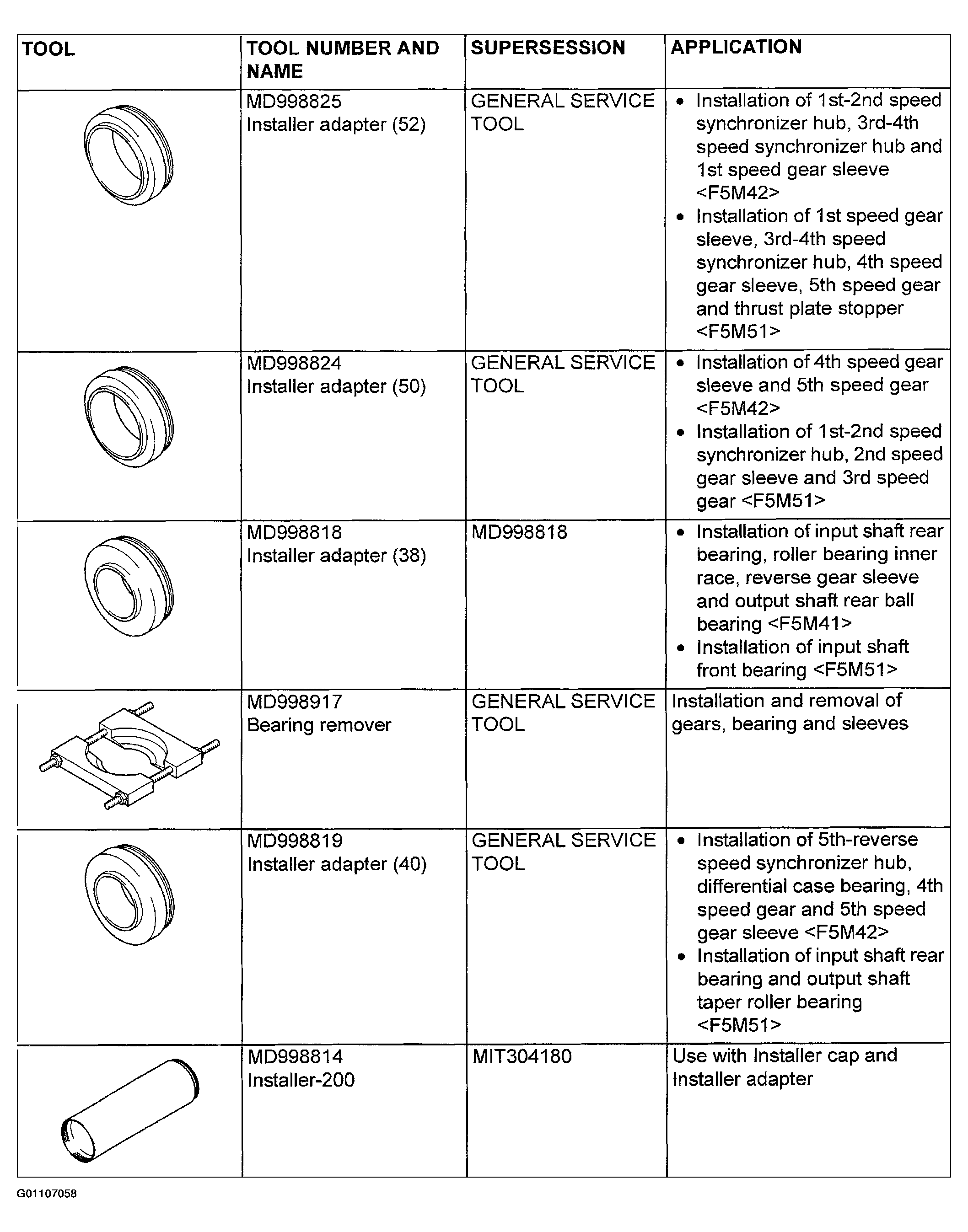

Fig 4: Identifying Special Tools (4 of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
