Servicing - M/T: General Description: Notes

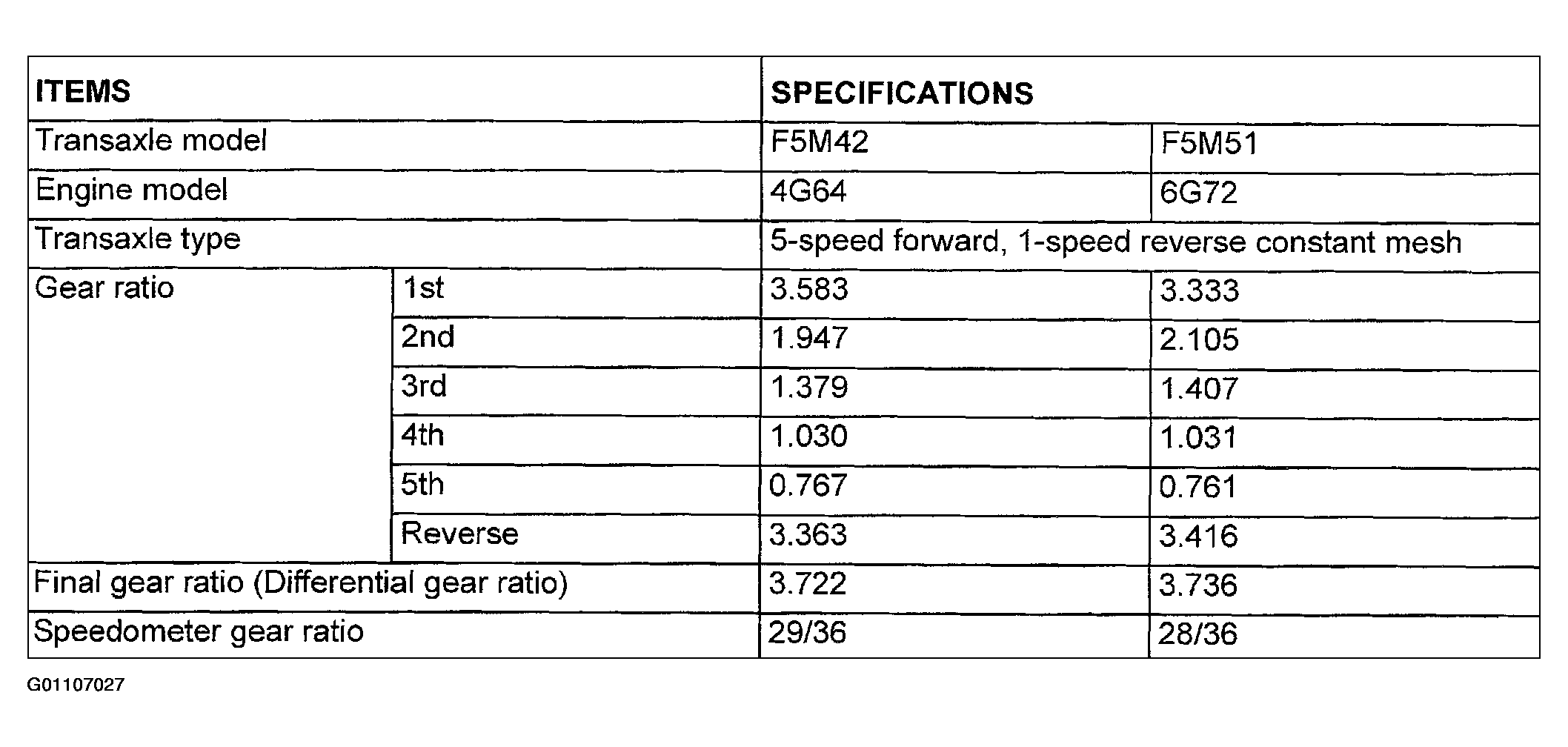

Fig 1: General Description
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
