Engine Controls - Self-Diagnostics - 2.4L
›
Self-Diagnostic System
›
Electronic Control Module Locations
Electronic Control Module Locations
See
Fig 1
.

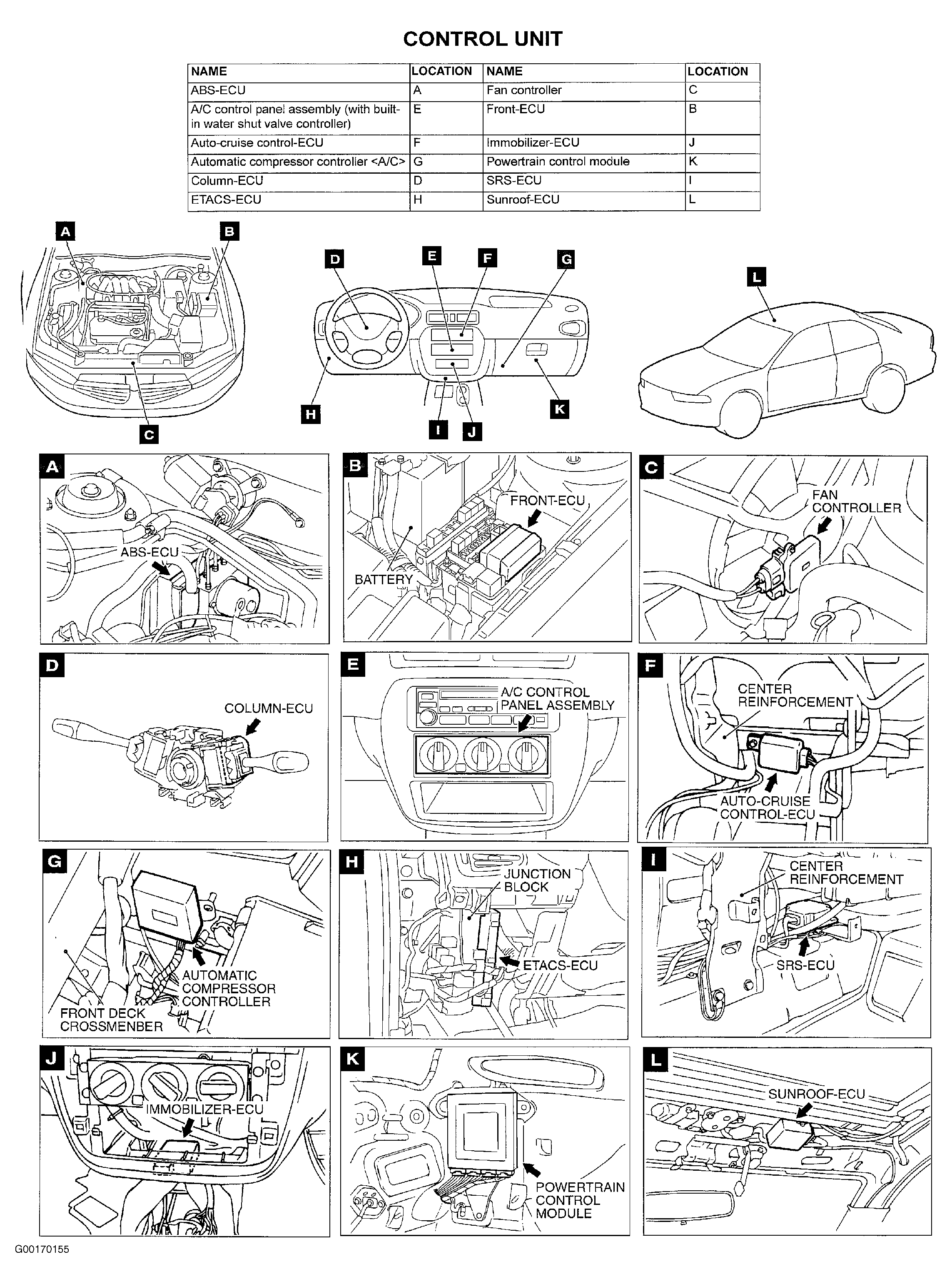

Fig 1: Locating Electronic Control Modules
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
