DTC P0106: Barometric Pressure Circuit Range/Performance Problem: Notes

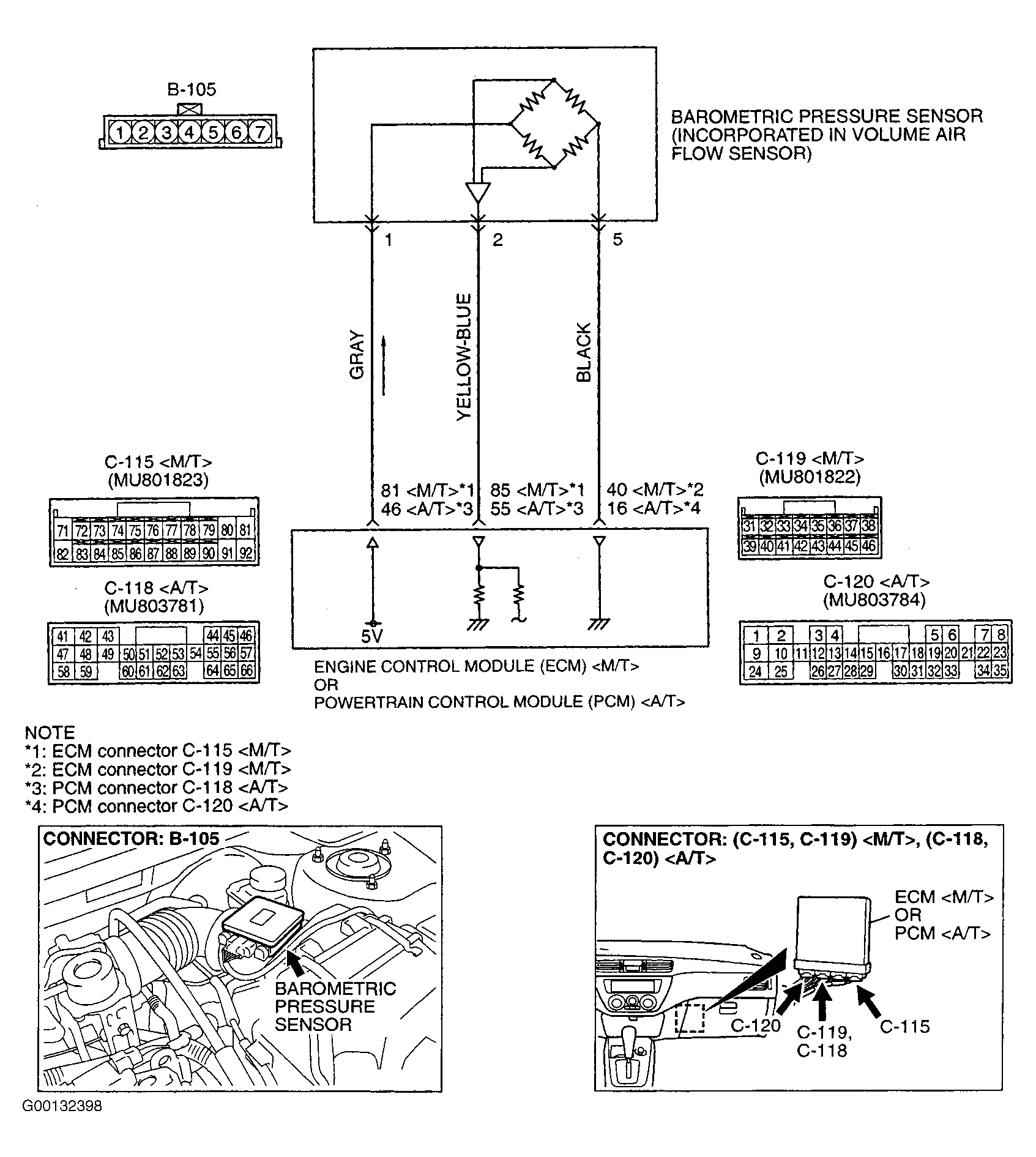

Fig 1: Identifying Barometric Pressure Sensor Circuit, Component & Connector Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Barometric Pressure (BARO) sensor is part of the Volume Airflow (VAF) sensor and cannot be serviced separately.
