DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem: Notes

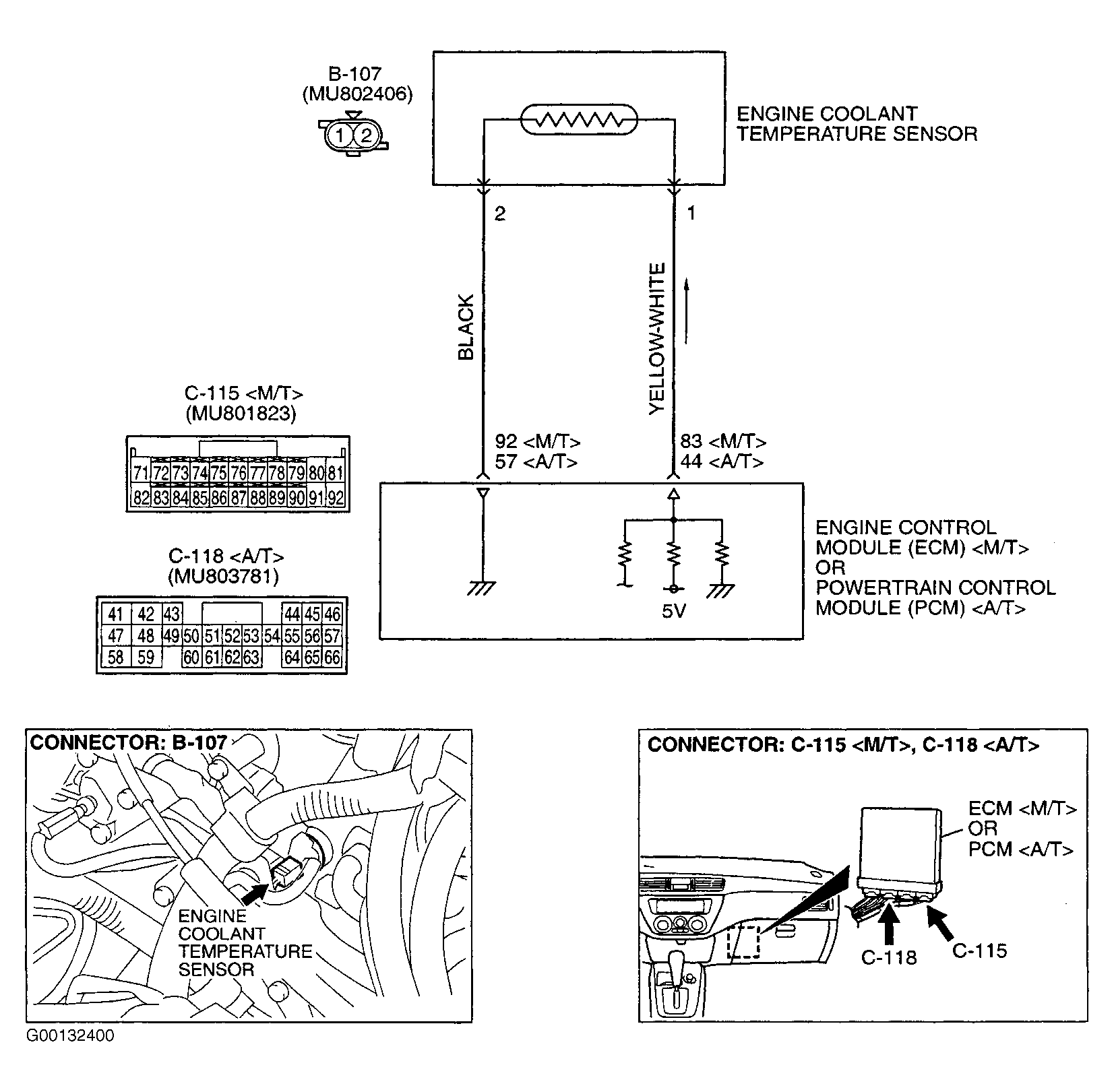

Fig 1: Identifying Engine Coolant Temperature Sensor Circuit, Component & Connector Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
