DTC P0325: Knock Sensor Circuit
›
Notes
DTC P0325: Knock Sensor Circuit: Notes

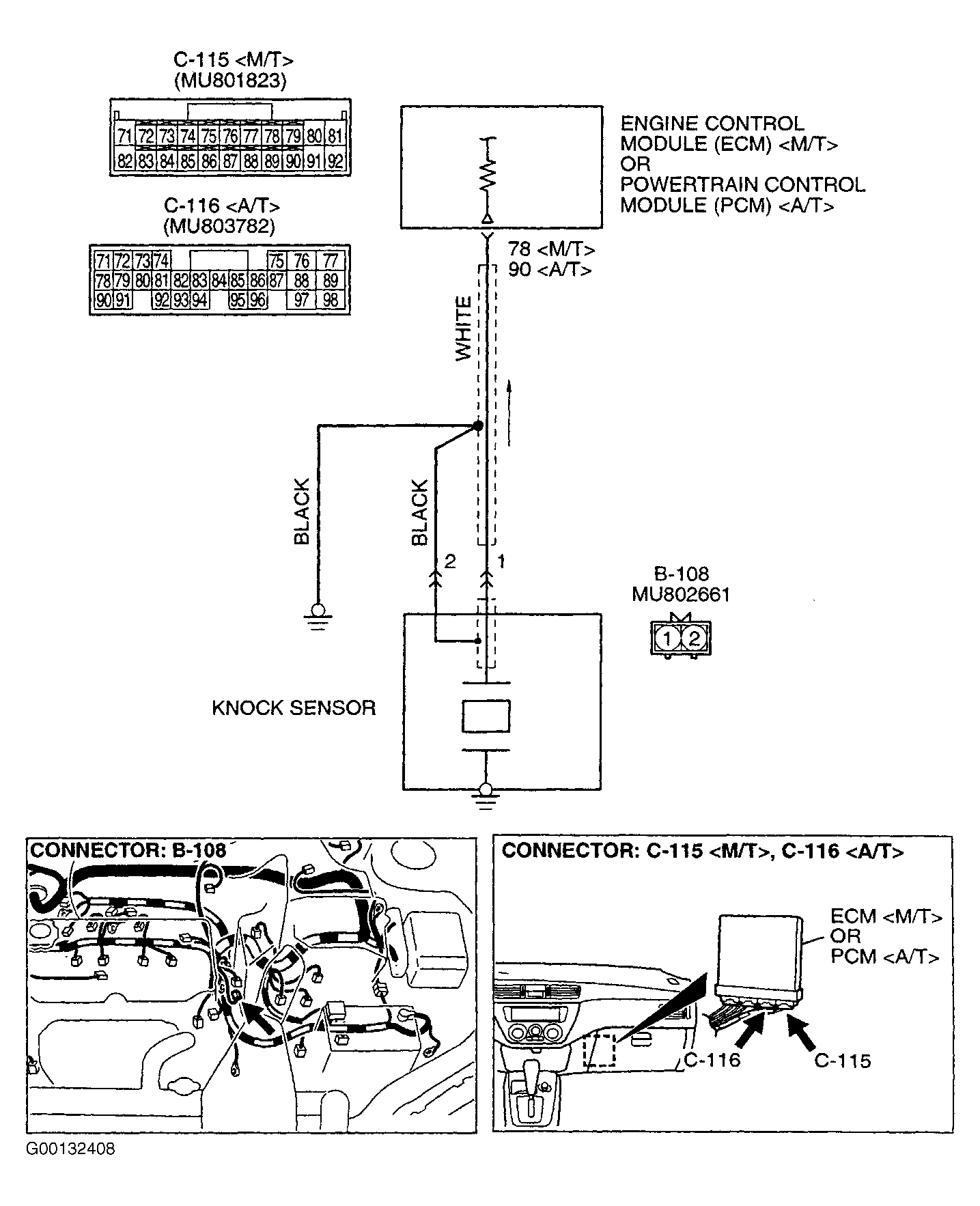

Fig 1: Identifying Knock Sensor Circuit, Component & Connector Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
