A/T Control Component Layout

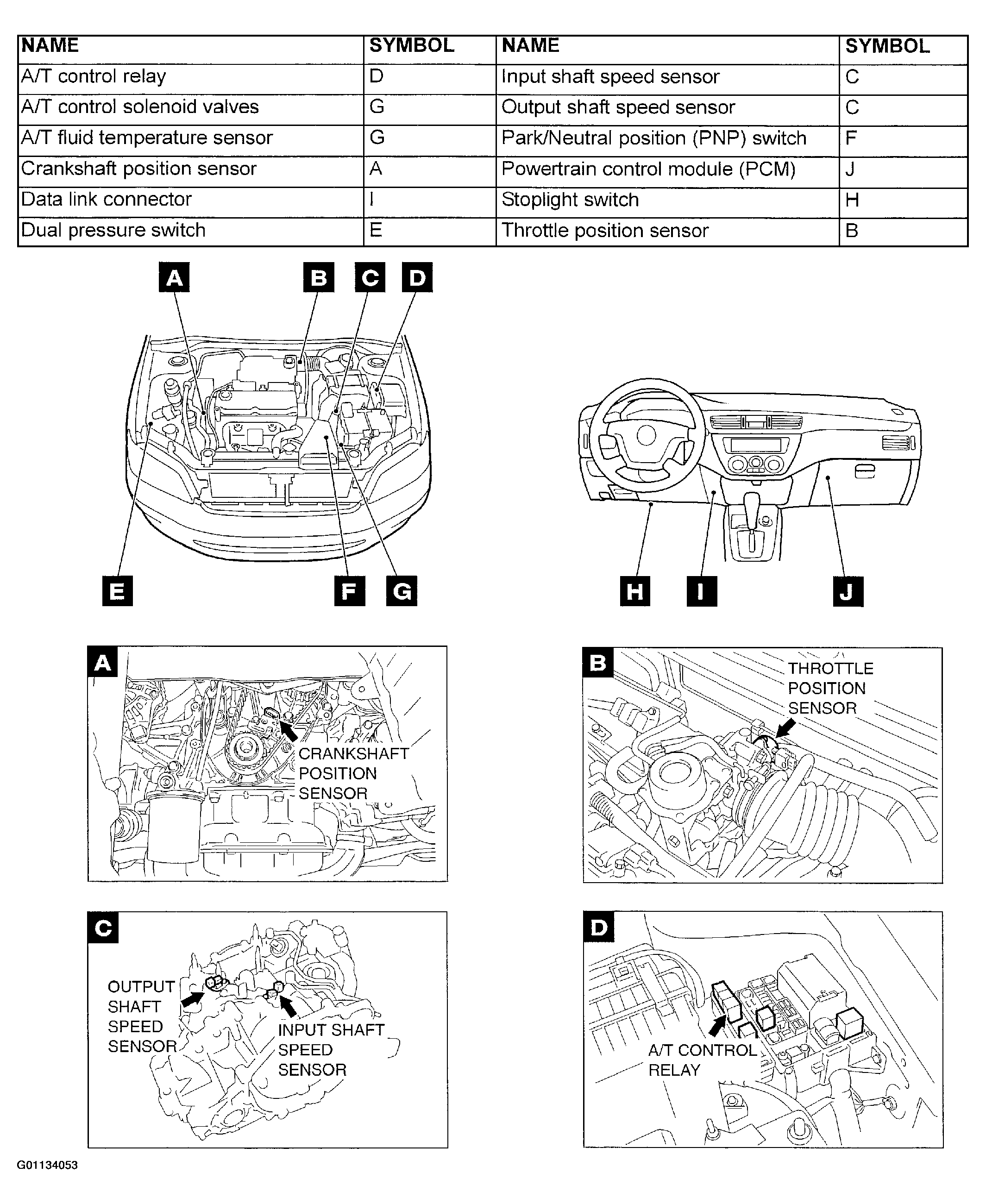

Fig 1: Locating Auto Transaxle Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

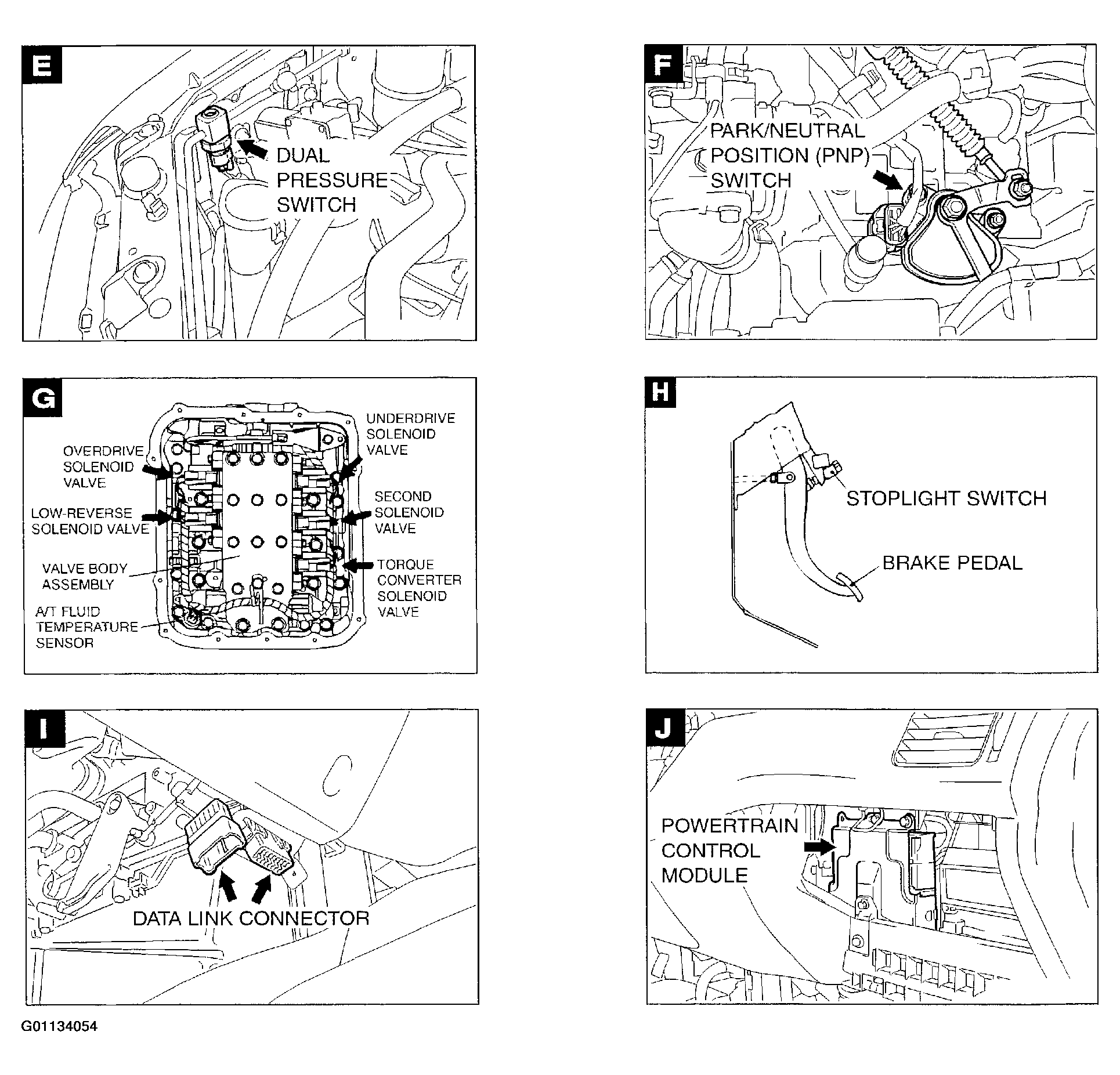

Fig 2: Locating Auto Transaxle Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
