Multiplex Control Systems: Description

The ETACS-ECU, the front ECU and the column switch (incorporating the column-ECU) are connected to each other by means of exclusive communication line in order to transmit and receive multiplex data. See Fig 1.

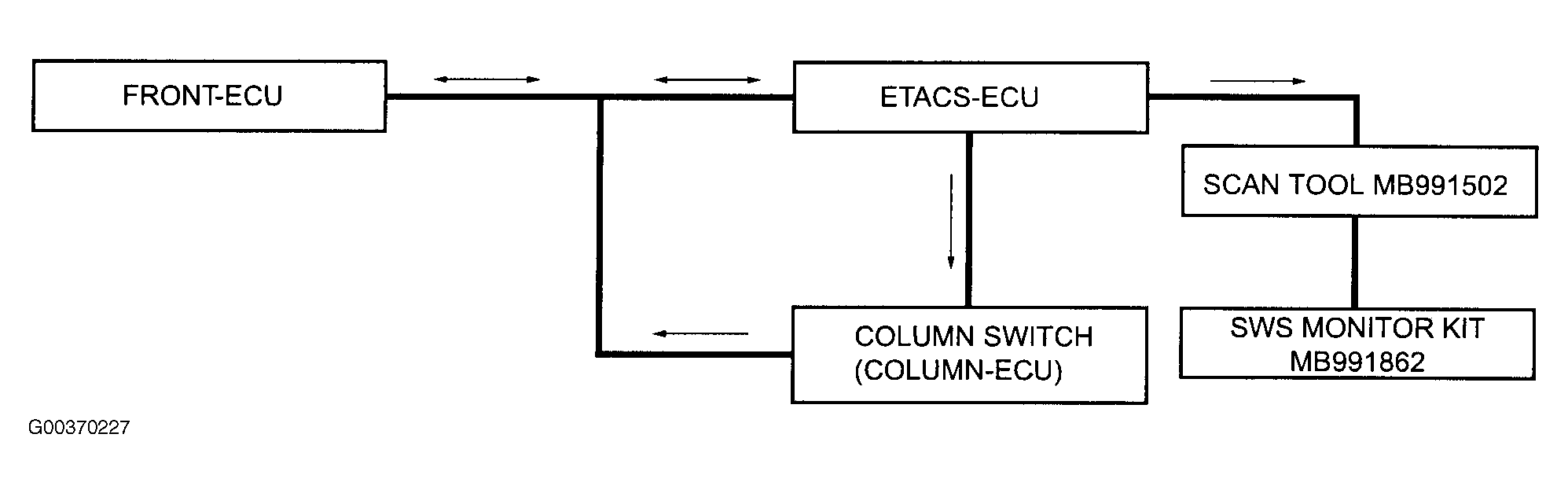

Fig 1: Identifying Communication Method

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
