Fastener Tightening Specifications

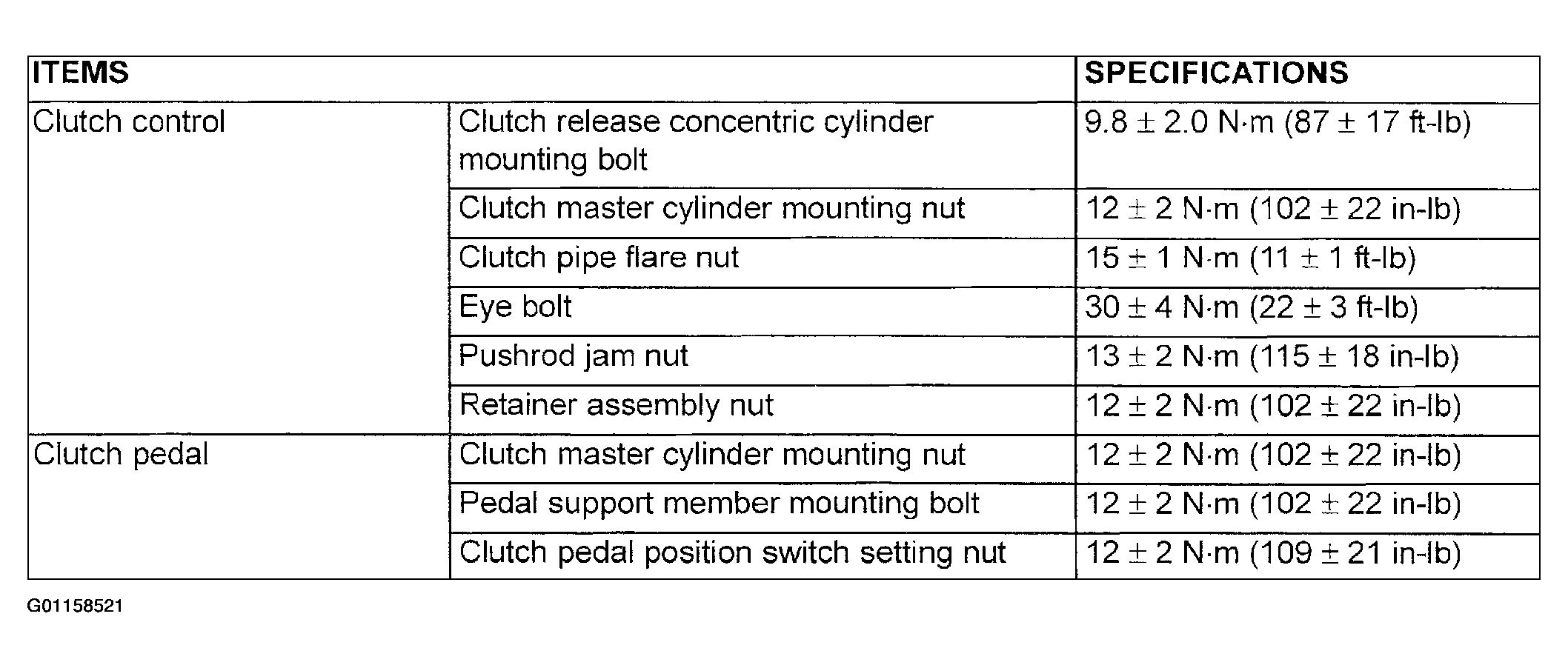

Fig 1: Fastener Tightening Torque Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

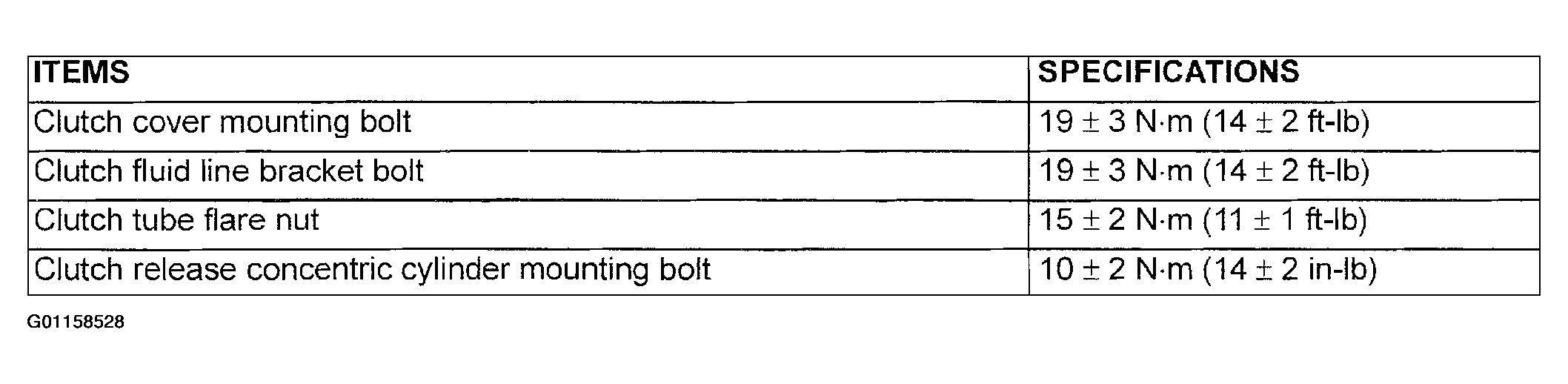

Fig 1: Fastener Tightening Torque Specifications Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
