Removal & Installation (Montero & Montero Sport)

To remove and install PCM, see Fig 1 or Fig 2 .

Fig 1: Locating PCM (Montero)
G00156256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

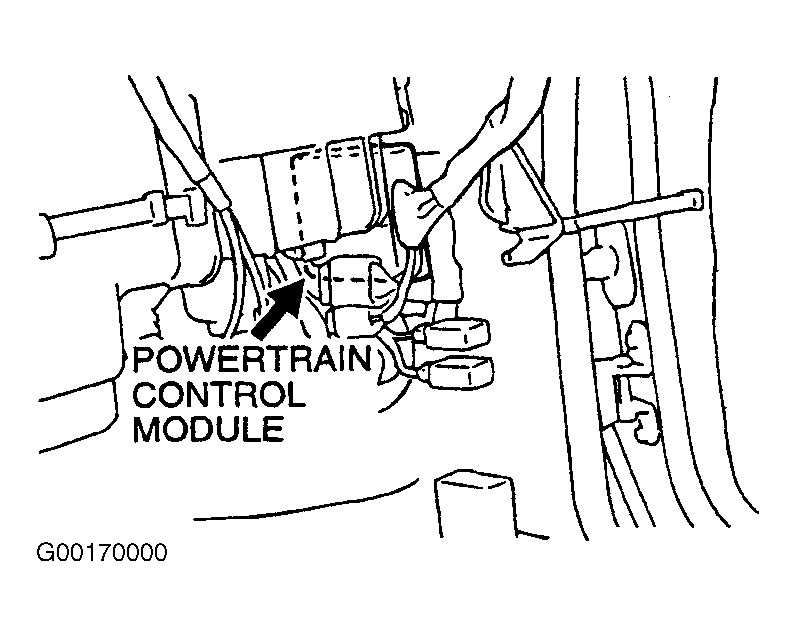

Fig 2: Locating PCM (Montero Sport)
G00170000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
