Disassembly And Assembly: Notes

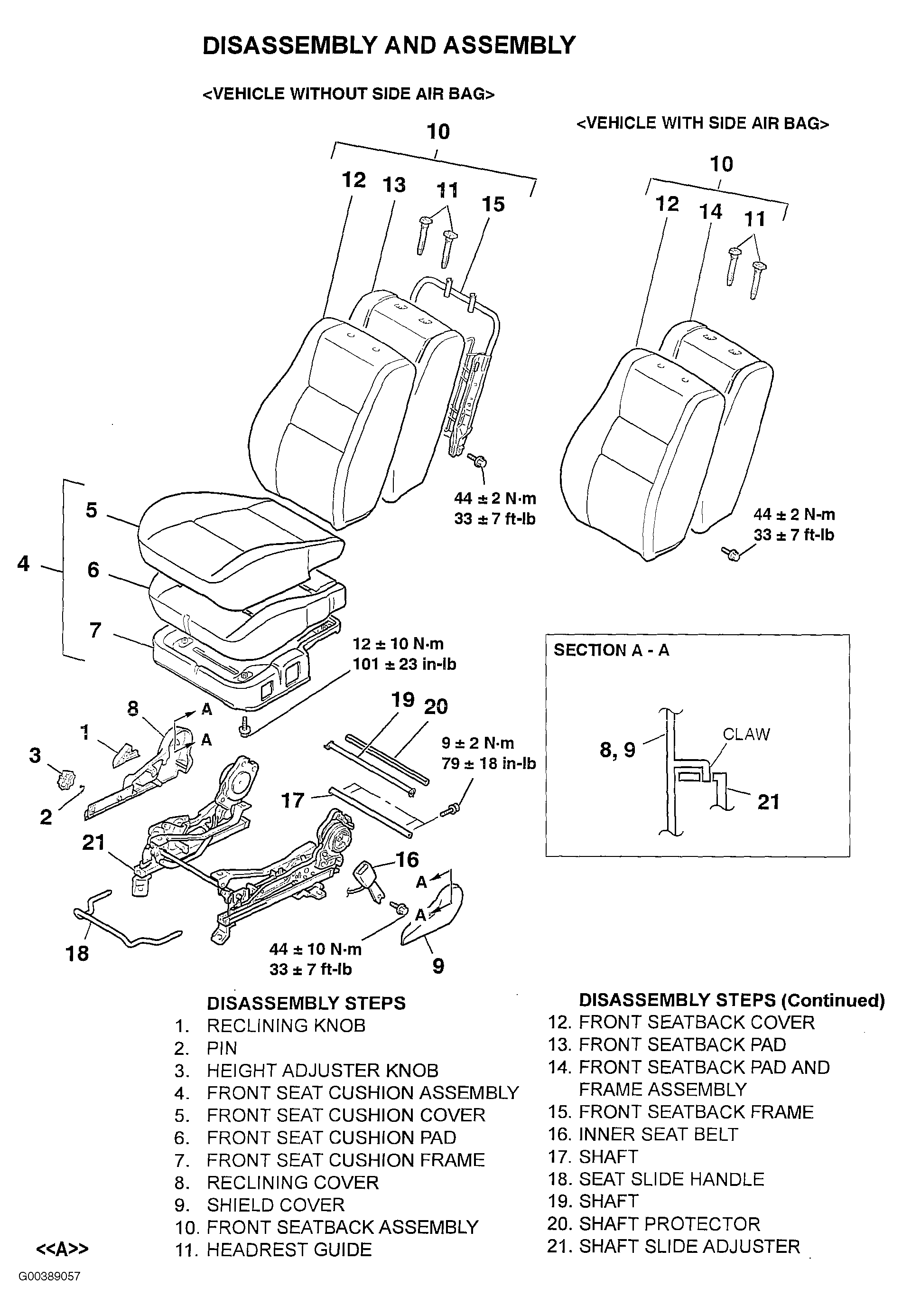

For front seat disassembly procedures, follow numbered steps in illustration. See Fig 1 . For front seat assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling front seat. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See DISASSEMBLY SERVICE POINTS .
