Removal And Installation: Notes

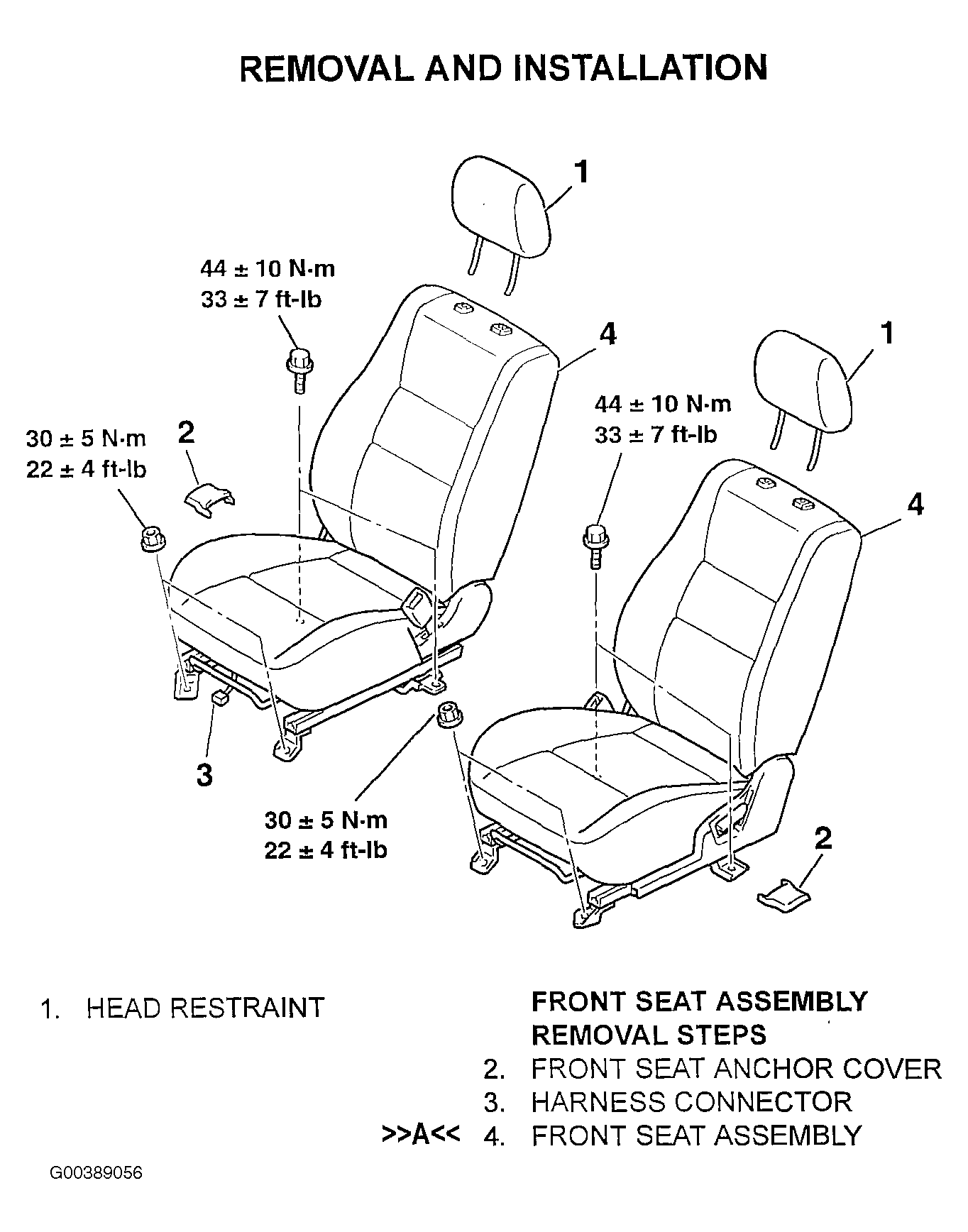

For front seat assembly removal procedures, follow numbered steps in illustration. See Fig 1 . For front seat assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing front seat assembly. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINTS .
