Disassembly And Assembly

For instrument panel disassembly procedures, follow numbered steps in illustration. See Fig 1 . For instrument panel assembly procedures, follow numbers steps in illustration in reverse order.

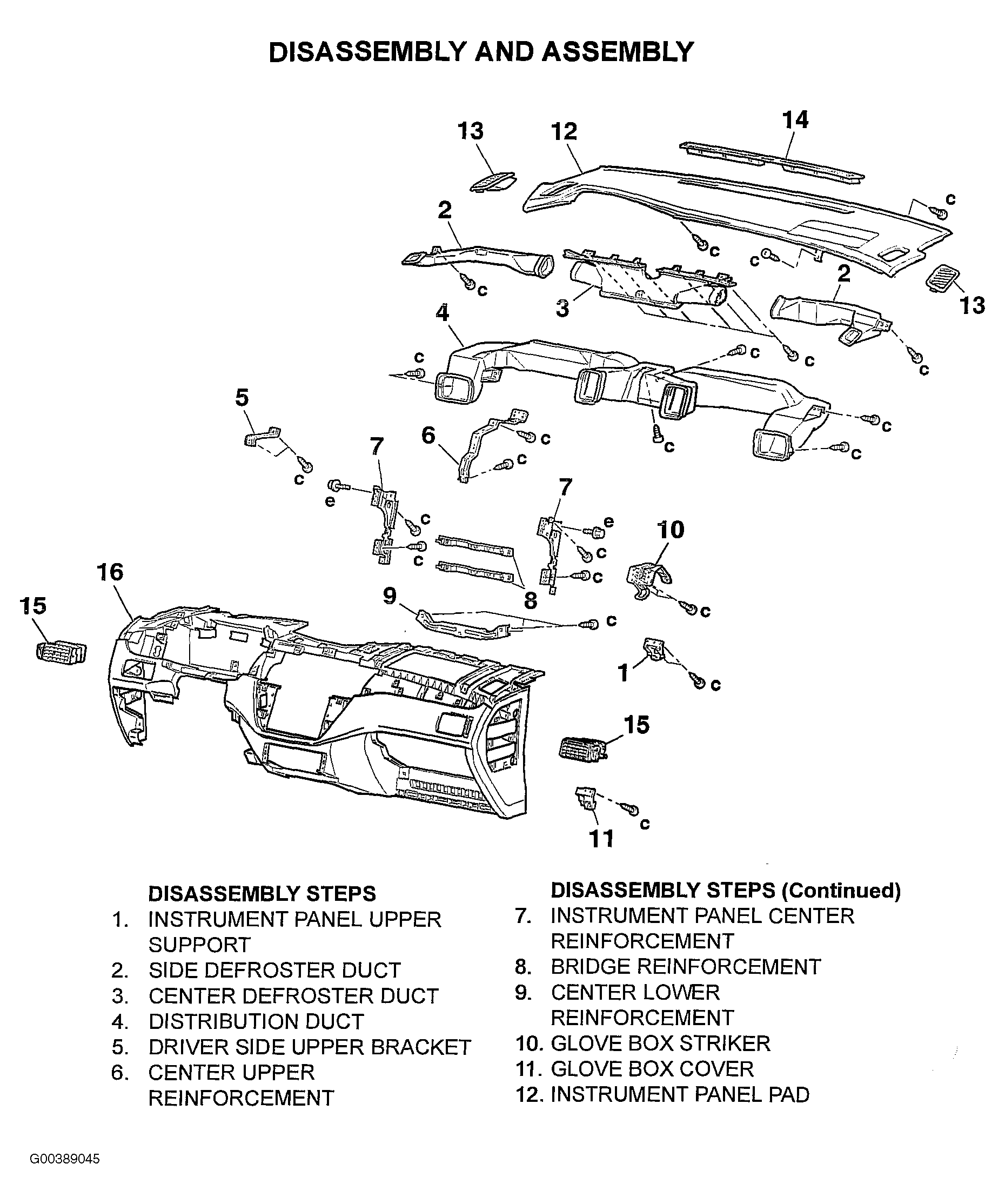

Fig 1: Exploded View Of Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
