Disassembly And Assembly: Notes

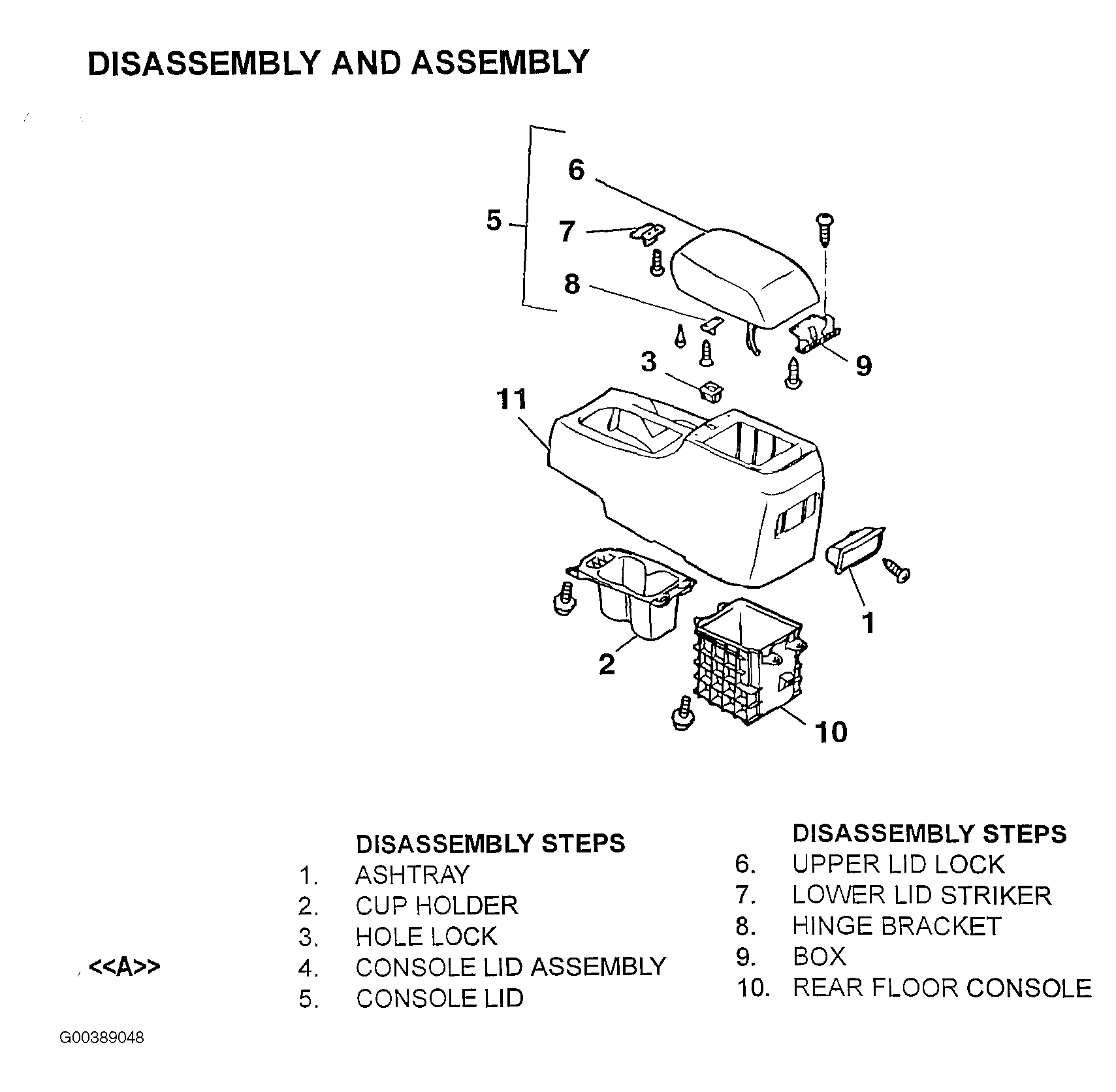

For rear floor console disassembly procedures, follow numbered steps in illustration. See Fig 1 . For rear floor console assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing rear floor console. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINT .
