Power Window Switch Continuity Check
›
Main Switch
Main Switch

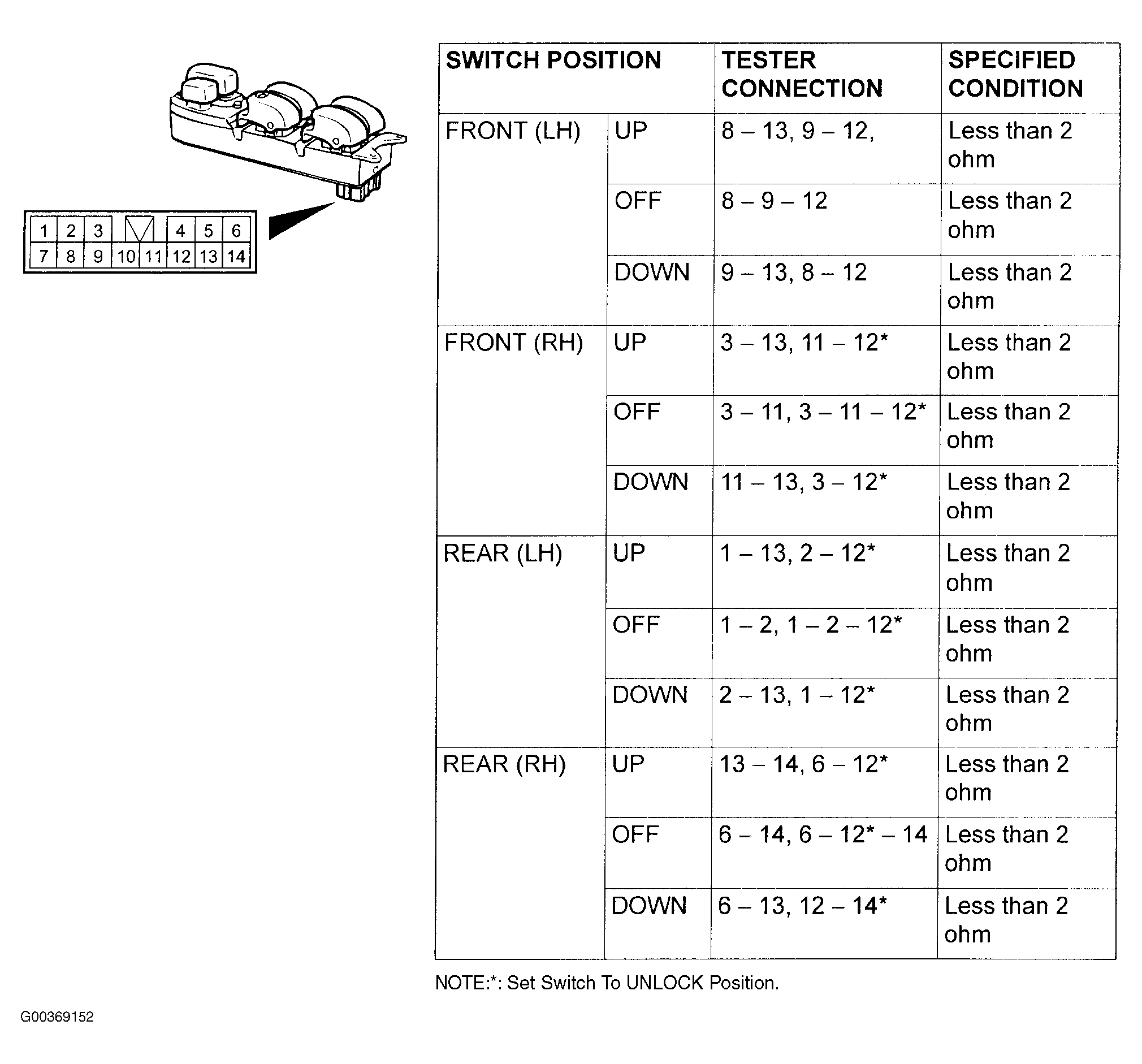

Fig 1: Checking Power Window Main Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
