Using ANTI-LOCK Warning Light
- To retrieve stored DTCs, locate Data Link Connector (DLC). DLC is located under driver side of dash. Turn ignition switch off. Remove ABS valve relay in center of firewall in engine compartment. See Figure
.
- Ground DLC terminal No. 1. See Fig 1

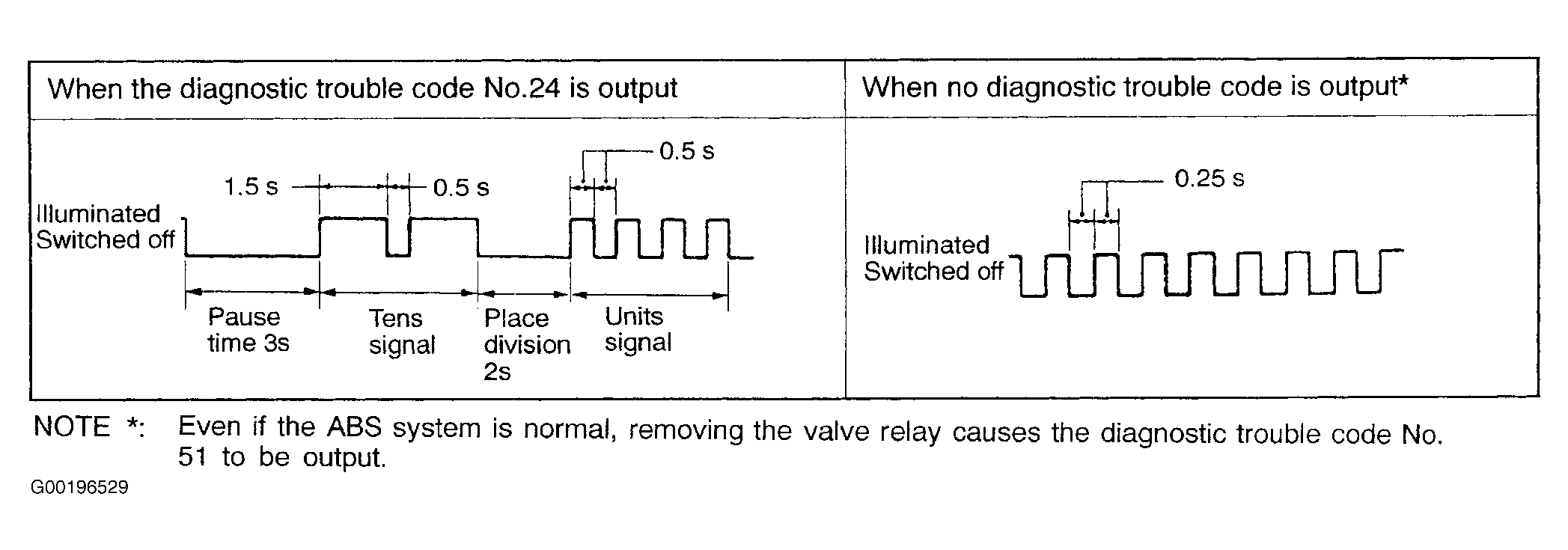

. If any DTCs are stored in ECU memory, ANTI-LOCK warning light will began to flash intermittently. Long flashes represent first digit of DTC; short flashes represent second digit. For example, 4 long flashes and 3 short flashes indicate DTC 43. See Fig 2
. If 2 or more DTCs are stored, lowest number will be displayed first.
- If any DTCs are retrieved, perform appropriate test. See DIAGNOSTIC TROUBLE CODE DEFINITION
. If no DTCs are stored, ANTI-LOCK warning light will flash constantly.
