ABS Warning Light Circuit Connector End Views
ABS Warning Light Circuit Connector End Views

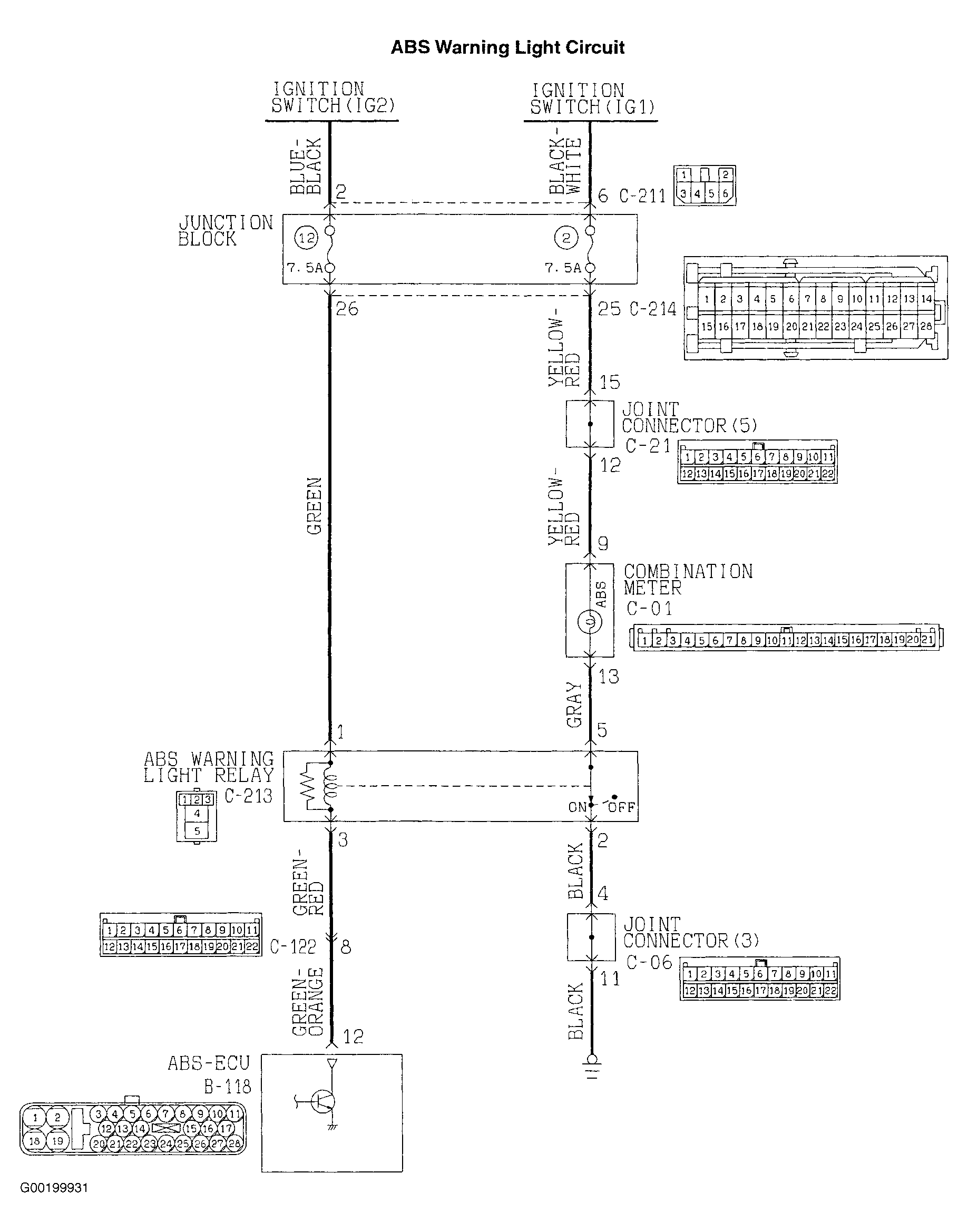

Fig 1: ABS Warning Light Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
