Backup Light Switch Input Circuit Connector End Views
Backup Light Switch Input Circuit Connector End Views

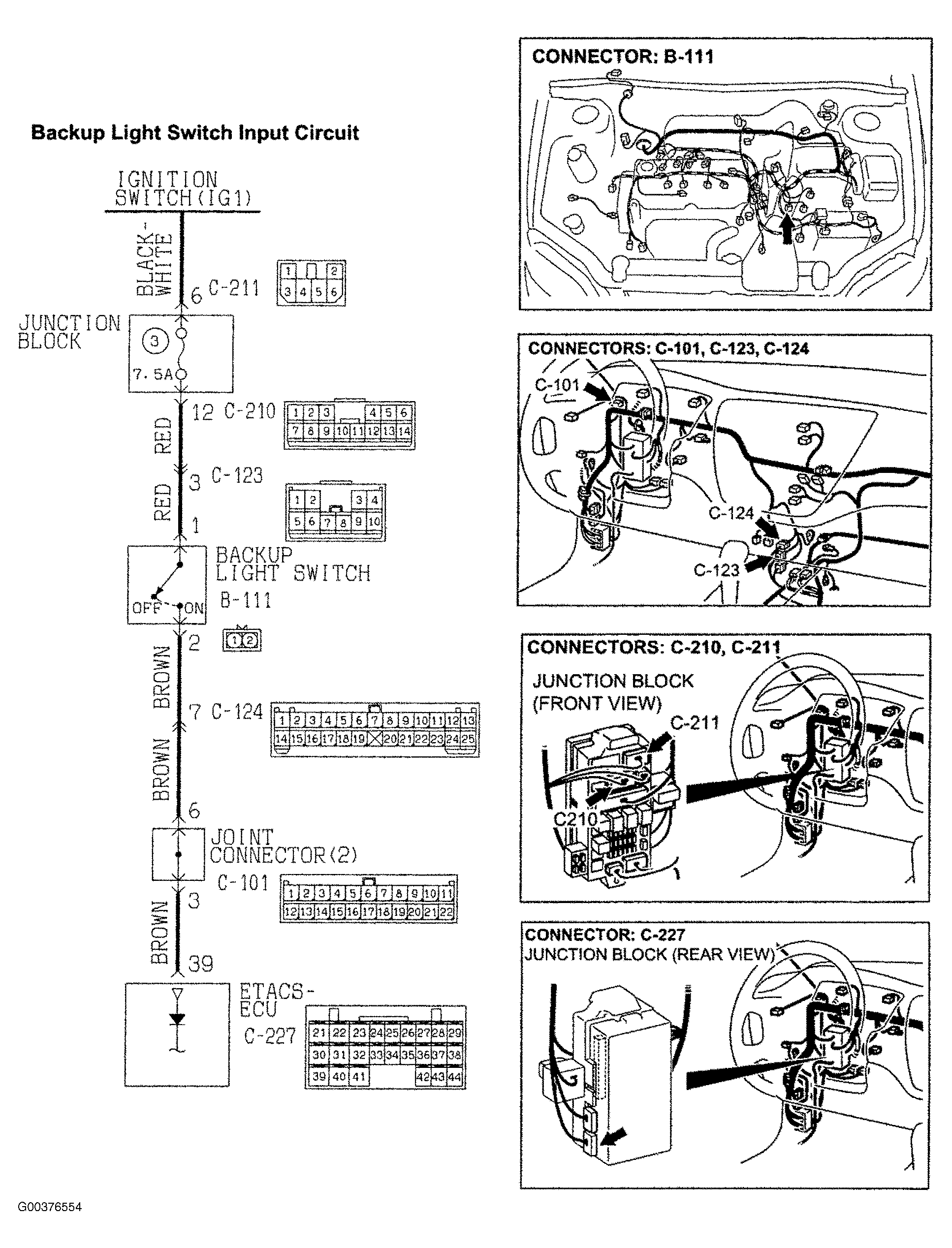

Fig 1: Backup Light Switch Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
