Headlights Circuit Connector End Views
Headlights Circuit Connector End Views

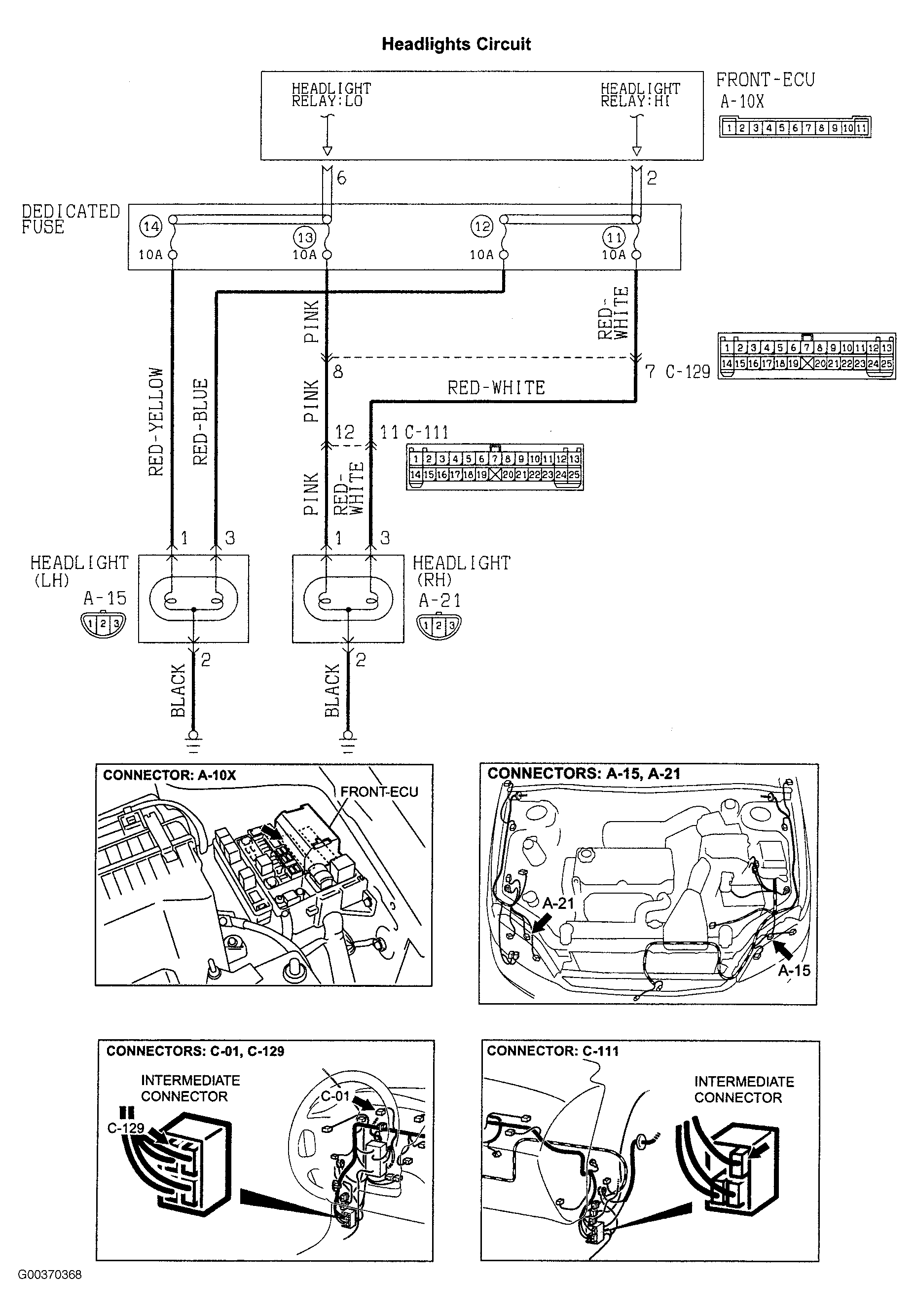

Fig 1: Headlights Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
