Ignition Switch (IG1) Input Circuit Connector End Views
Ignition Switch (IG1) Input Circuit Connector End Views

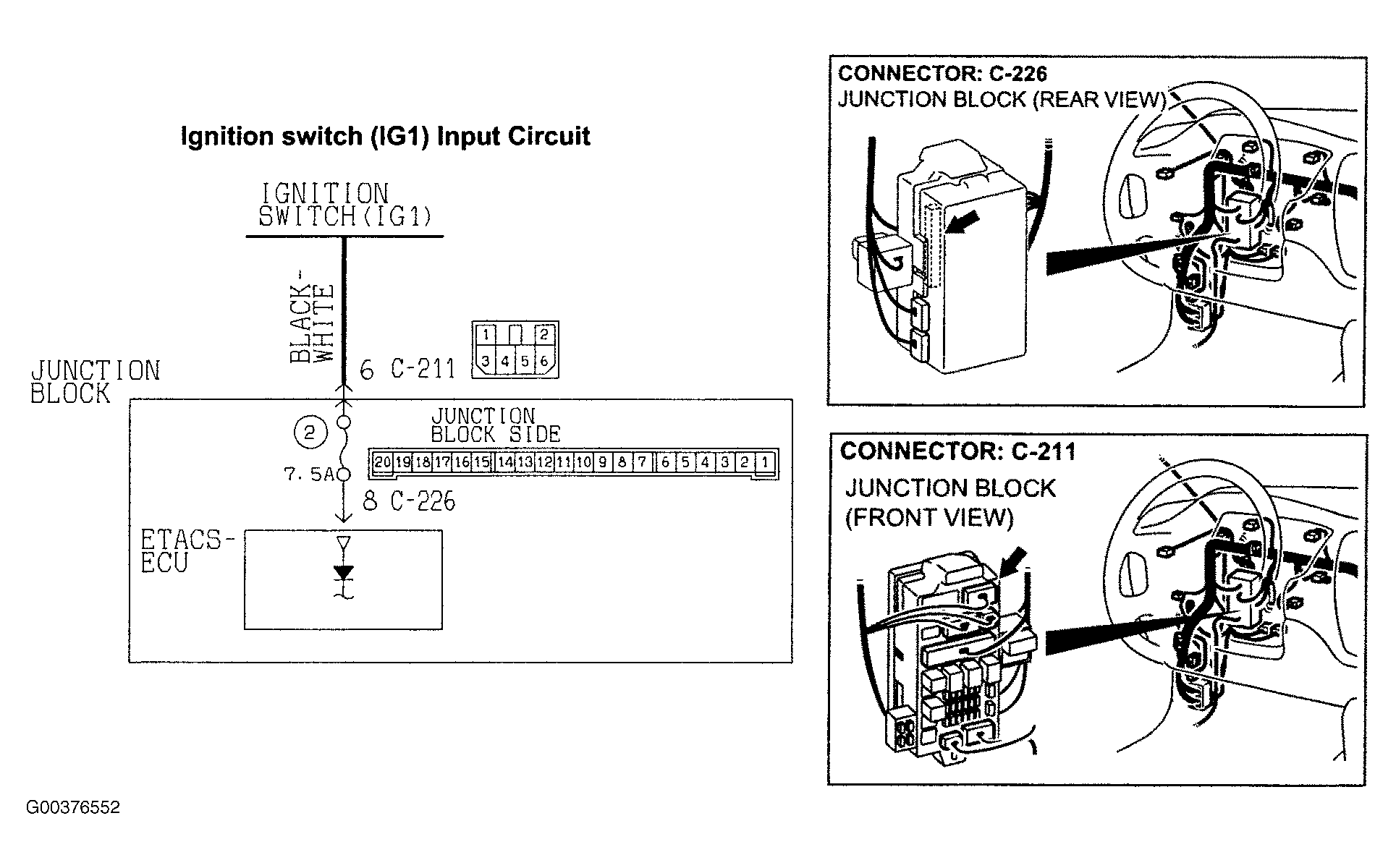

Fig 1: Ignition Switch (IG1) Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
