Interior Light Automatic Shut-Down Function Circuit Connector End Views
Interior Light Automatic Shut-Down Function Circuit Connector End Views

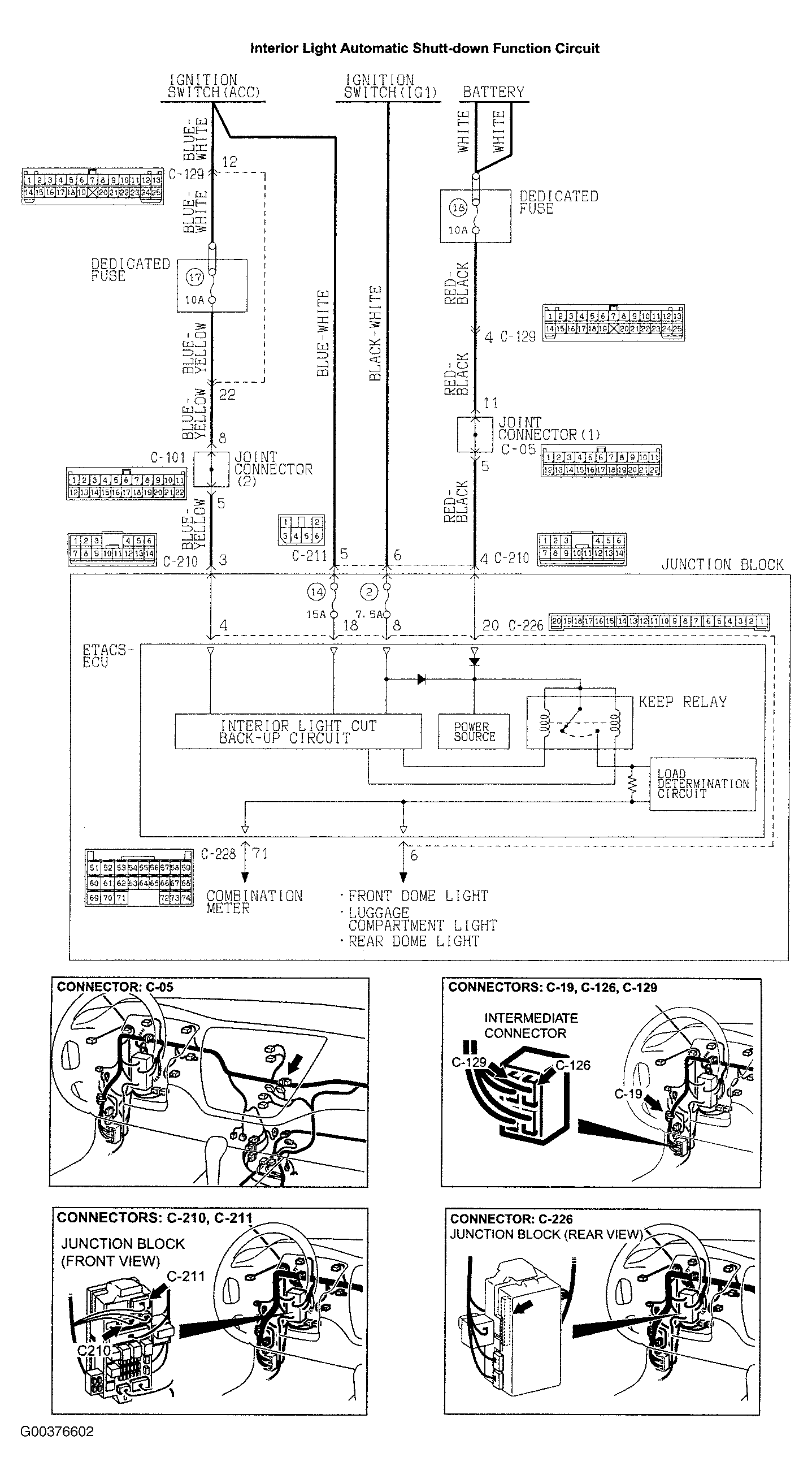

Fig 1: Interior Light Automatic Shut-Down Function Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
