Stoplight Switch Circuit Connector End Views
Stoplight Switch Circuit Connector End Views

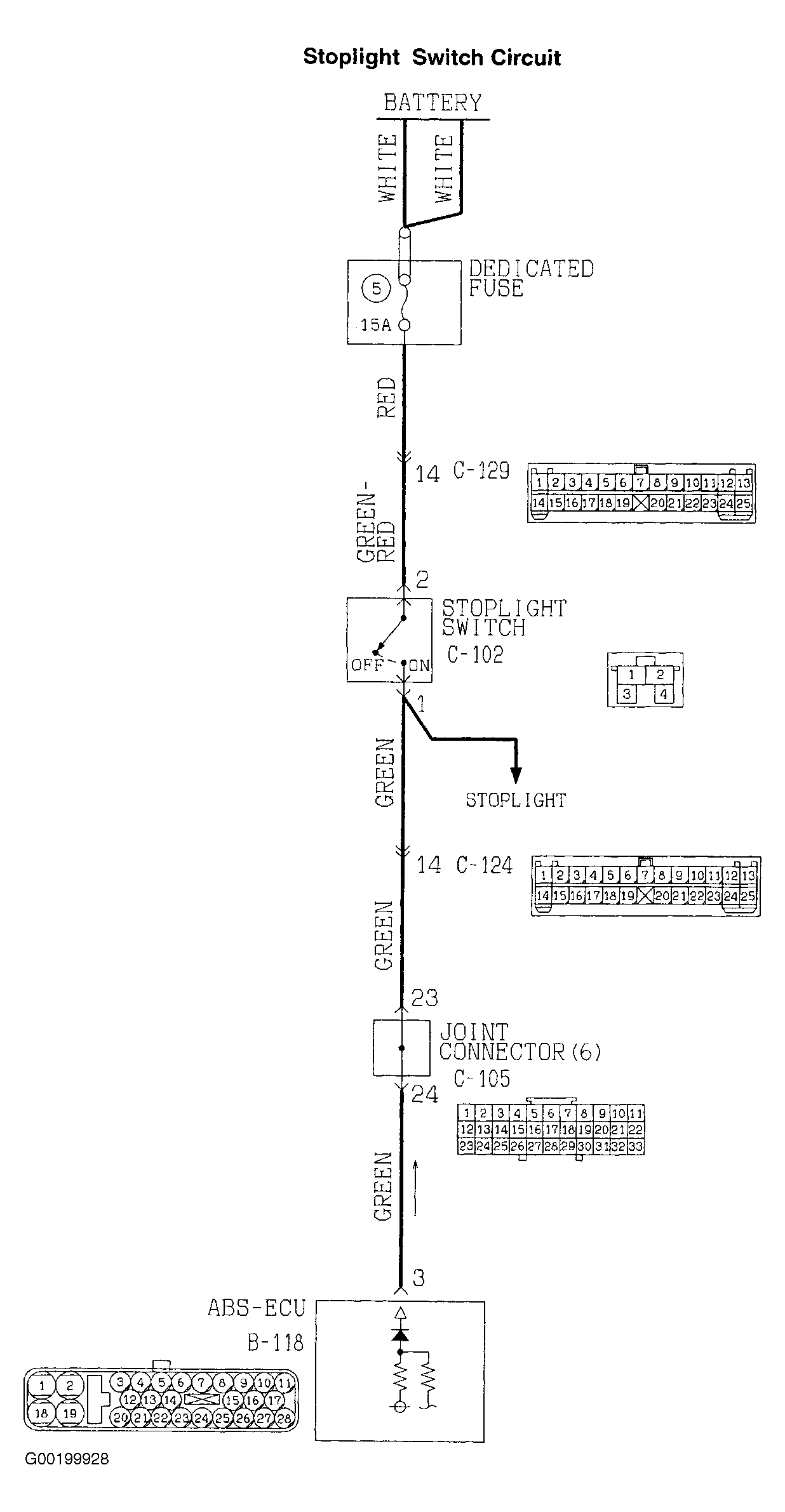

Fig 1: Stoplight Switch Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
