Throttle Position Sensor System Circuit Connector End Views
Throttle Position Sensor System Circuit Connector End Views

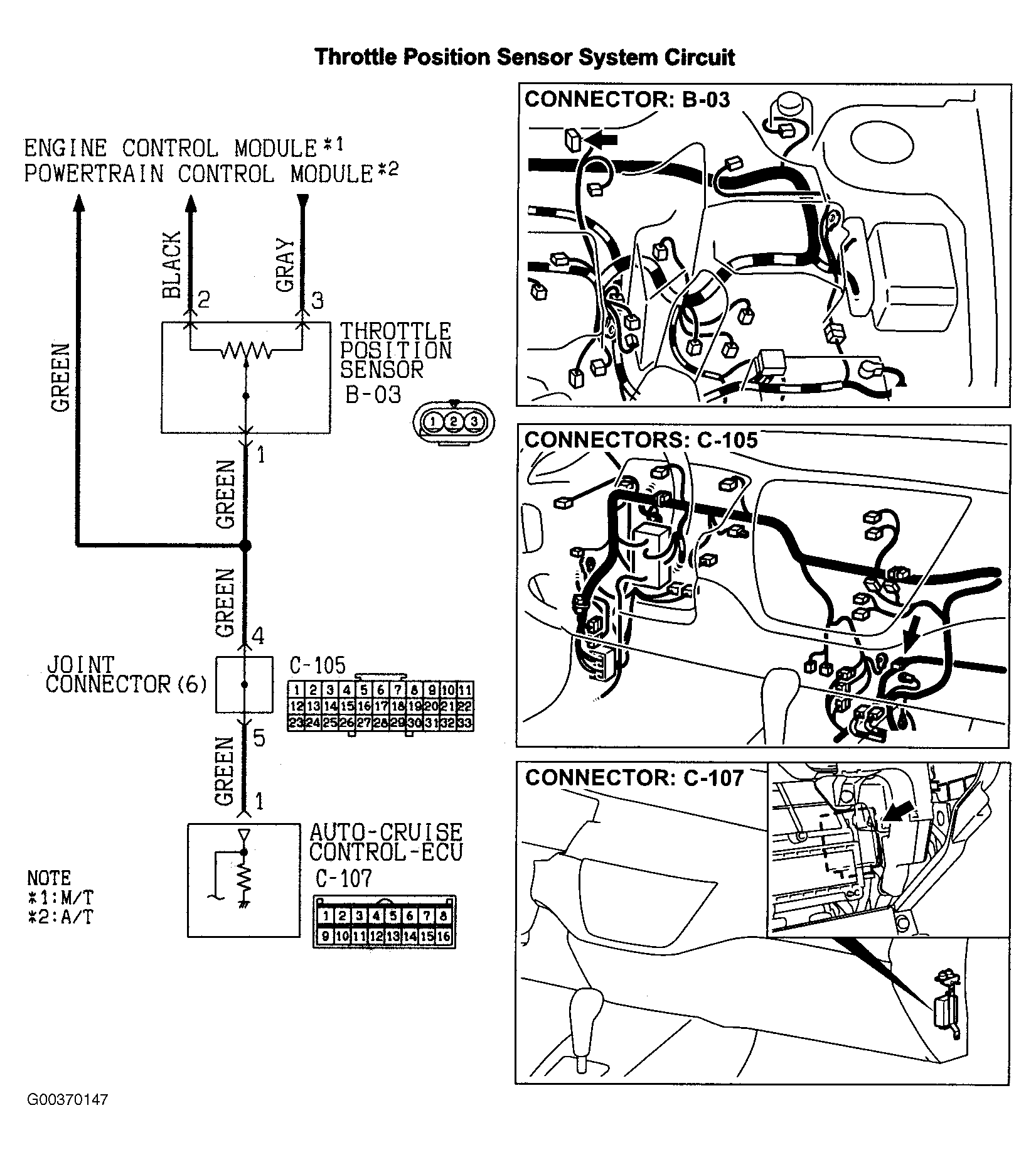

Fig 1: Throttle Position Sensor System Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
