Vehicle Speed Sensor Input Circuit Connector End Views
Vehicle Speed Sensor Input Circuit Connector End Views

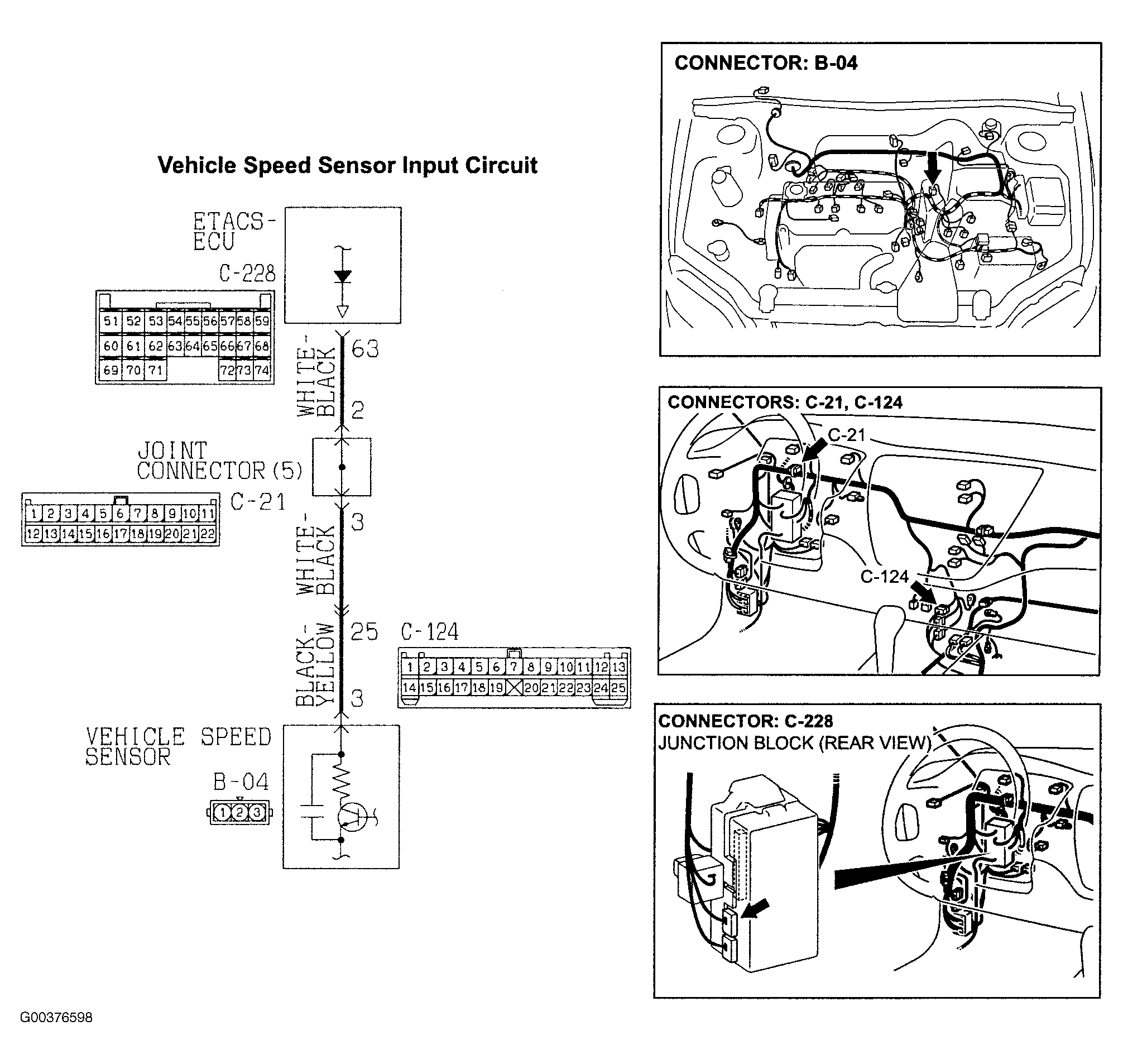

Fig 1: Vehicle Speed Sensor Input Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
