Wheel Speed Sensor Circuit Connector End Views
Wheel Speed Sensor Circuit Connector End Views

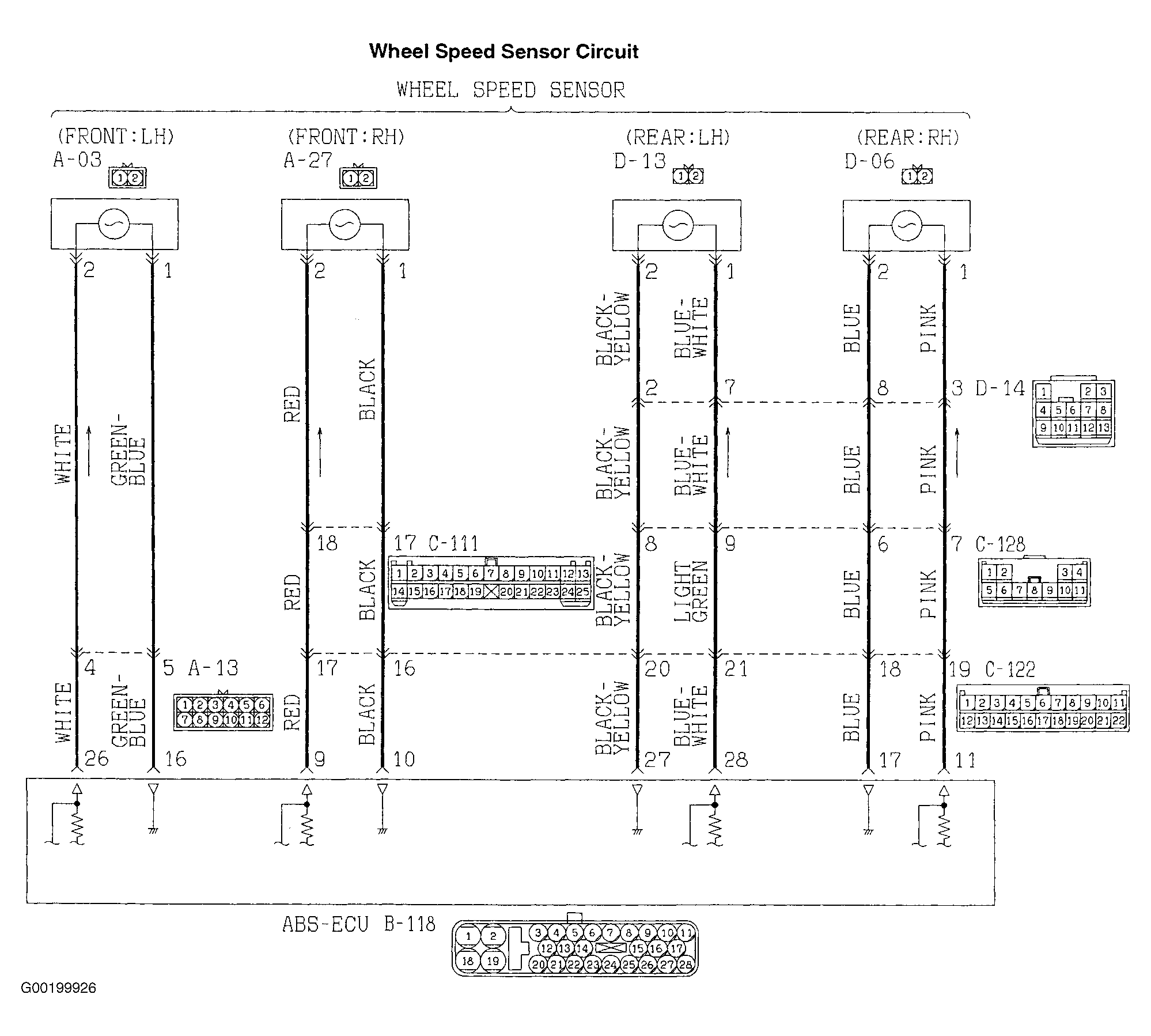

Fig 1: Wheel Speed Sensor Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
