Windshield Wiper Automatic Stop Relay Circuit Connector End Views
Windshield Wiper Automatic Stop Relay Circuit Connector End Views

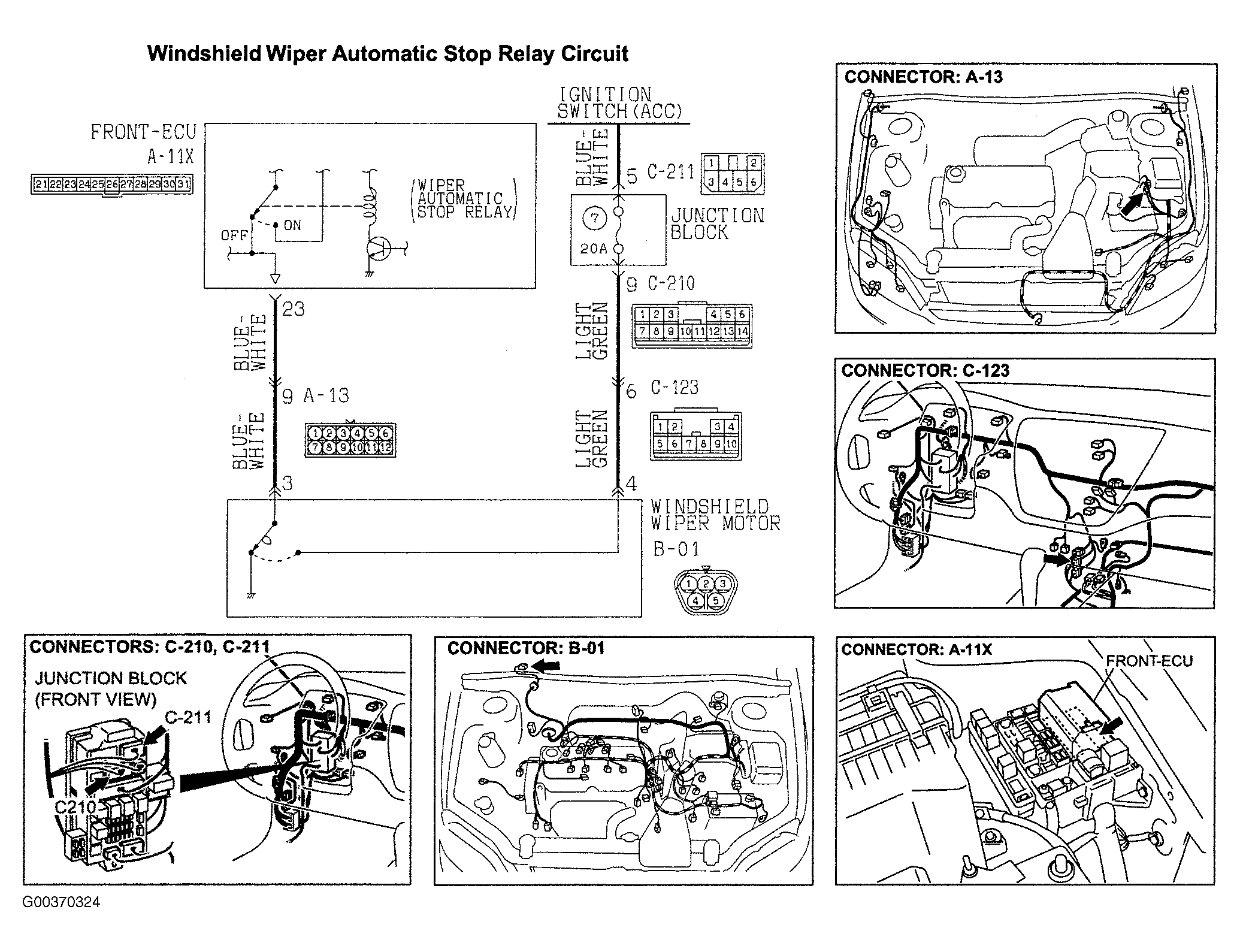

Fig 1: Windshield Wiper Automatic Stop Relay Circuit Connector End Views
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
