Condenser Fan Motor

Remove the condenser fan motor connector. Connect battery voltage to terminal No. 2 and ground terminal No. 1 and see if condenser fan operates. See Fig 1 . Also check that there is not abnormal sounds coming from the condenser fan motor. If condenser fan motor is defective, replace it.

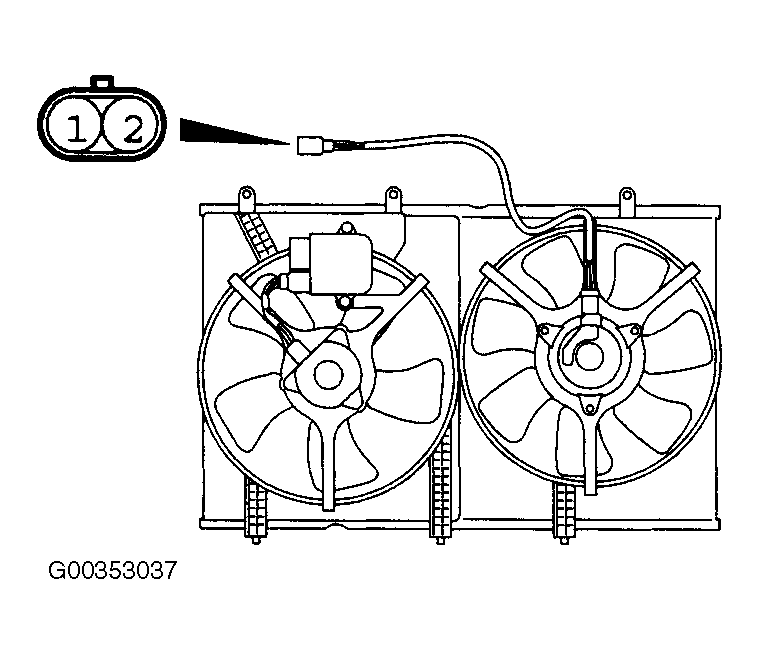

Fig 1: Testing Condenser Fan Motor
G00353037Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
