Removal And Installation: Notes

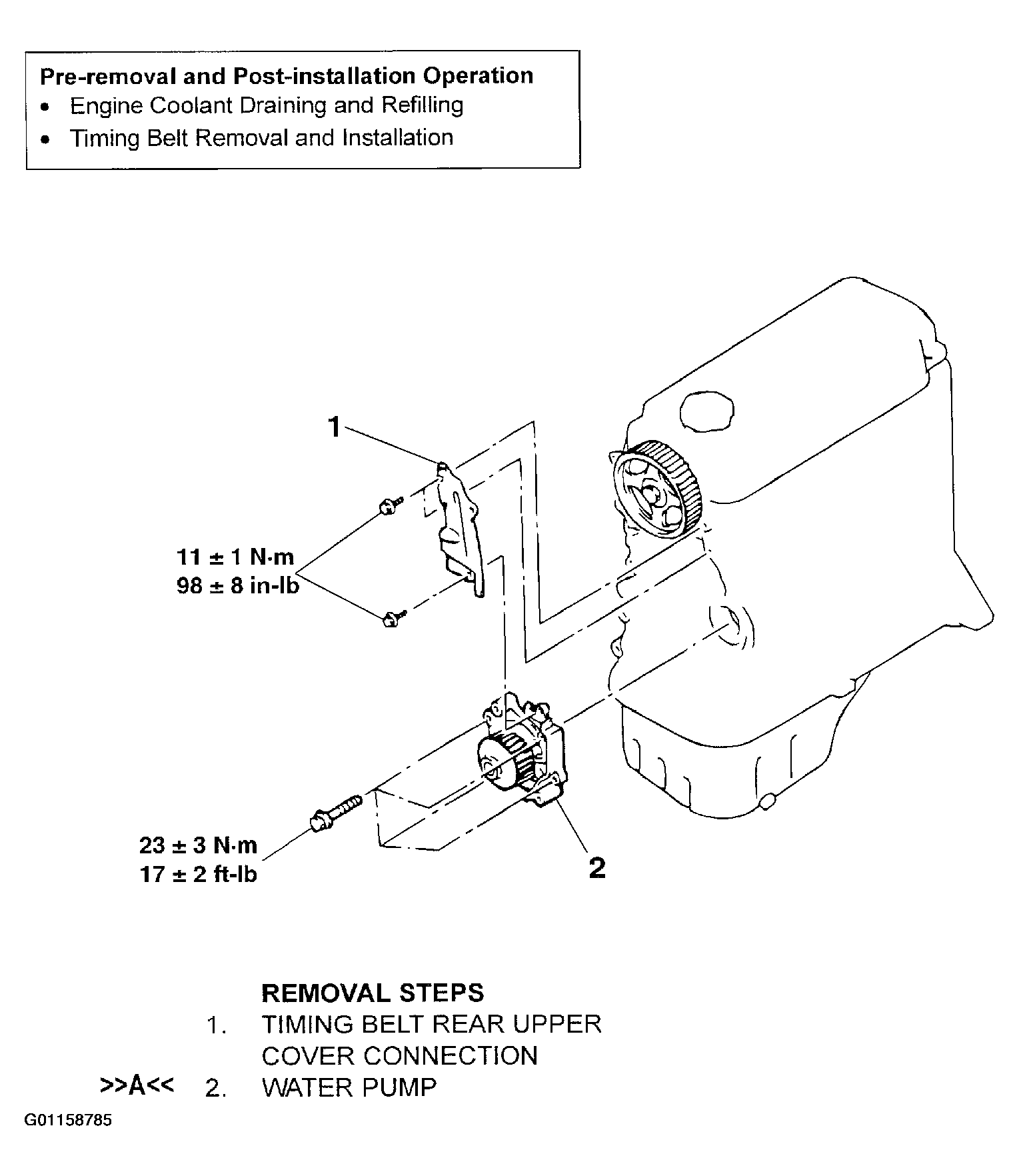

For water pump removal procedures, follow numbered steps in illustration. See Fig 1. For water pump installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing water pump. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .
