Engine Controls - Self-Diagnostics
›
Diagnostic Circuit Check
›
Scan Tool Will Not Communicate
›
Notes
Scan Tool Will Not Communicate: Notes

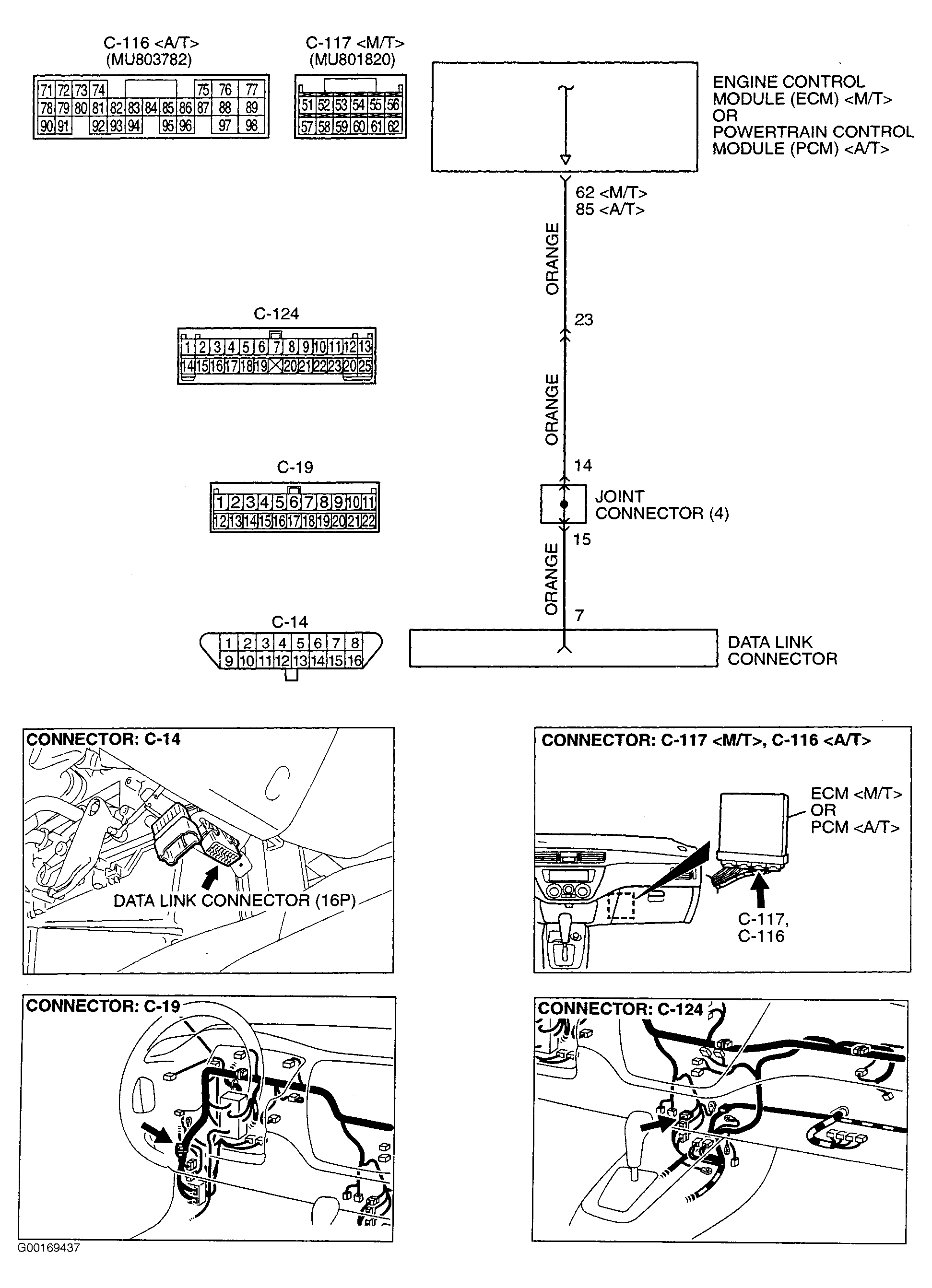

Fig 1: Identifying DLC Circuit, Component & Connector Location (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

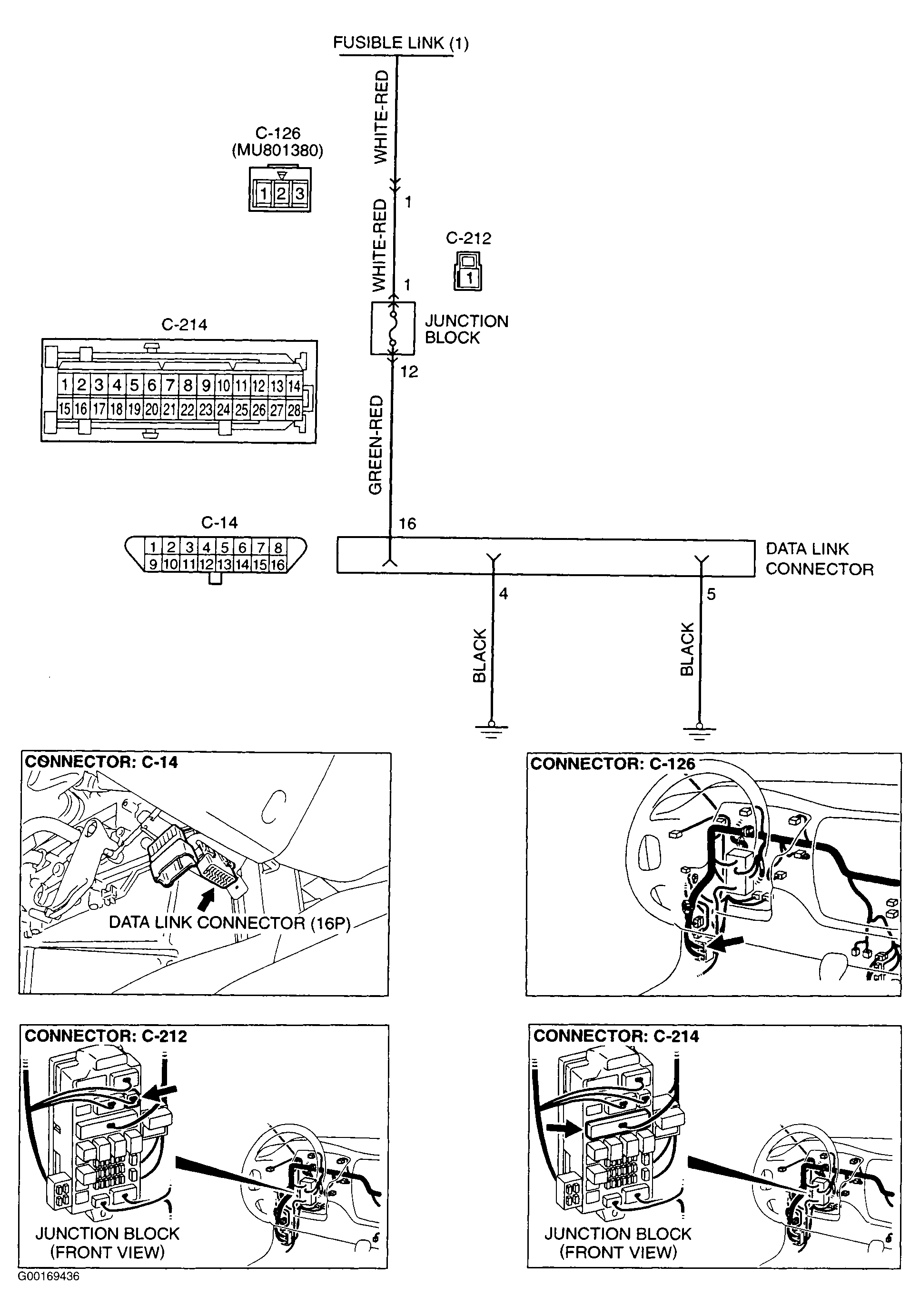

Fig 2: Identifying DLC Circuit, Component & Connector Location (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
