DTC P0111: Intake Air Temperature Circuit Malfunction
›
Notes
DTC P0111: Intake Air Temperature Circuit Malfunction: Notes

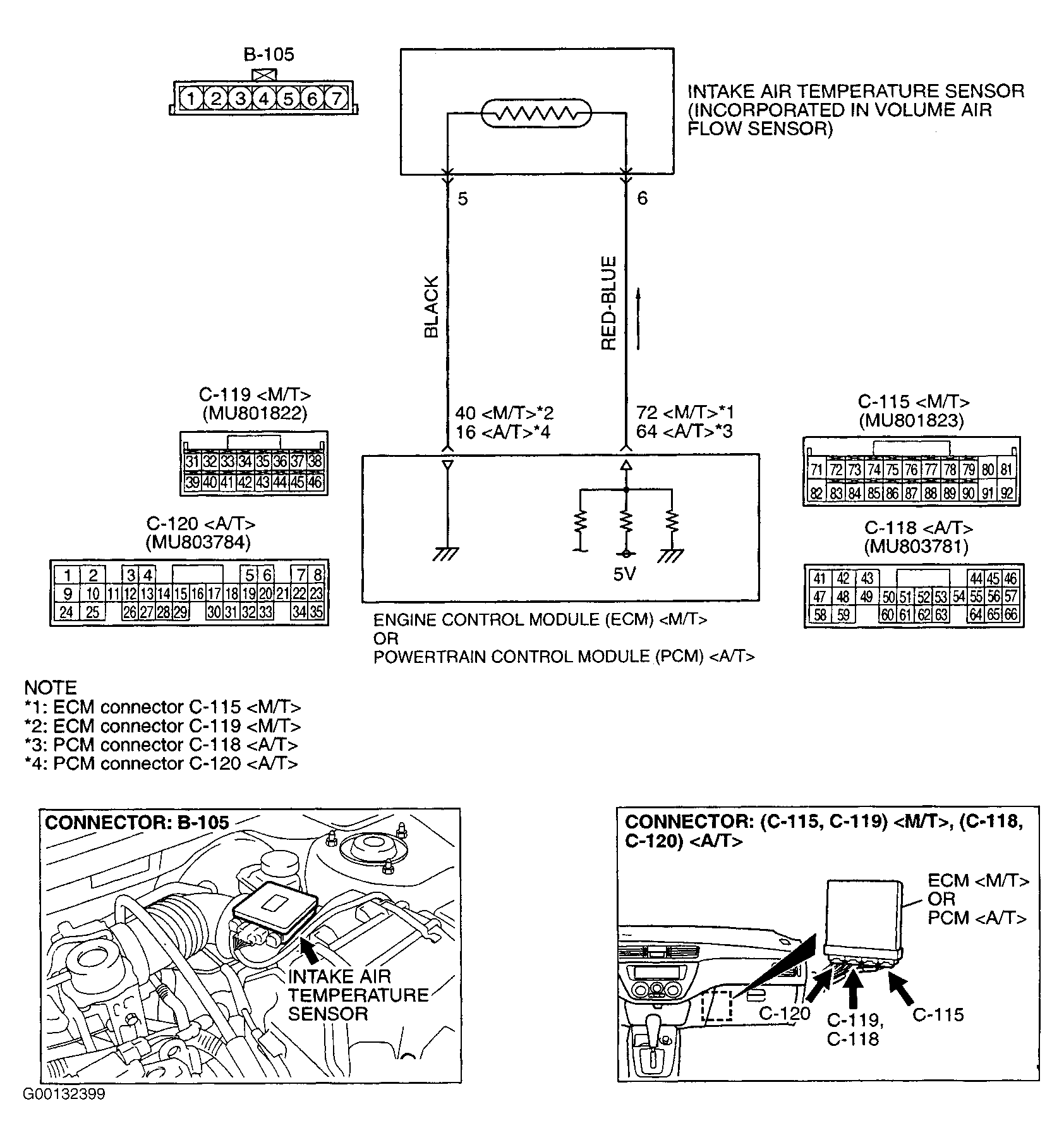

Fig 1: Identifying Intake Air Temperature Sensor Circuit, Component & Connector Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
