DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: Notes

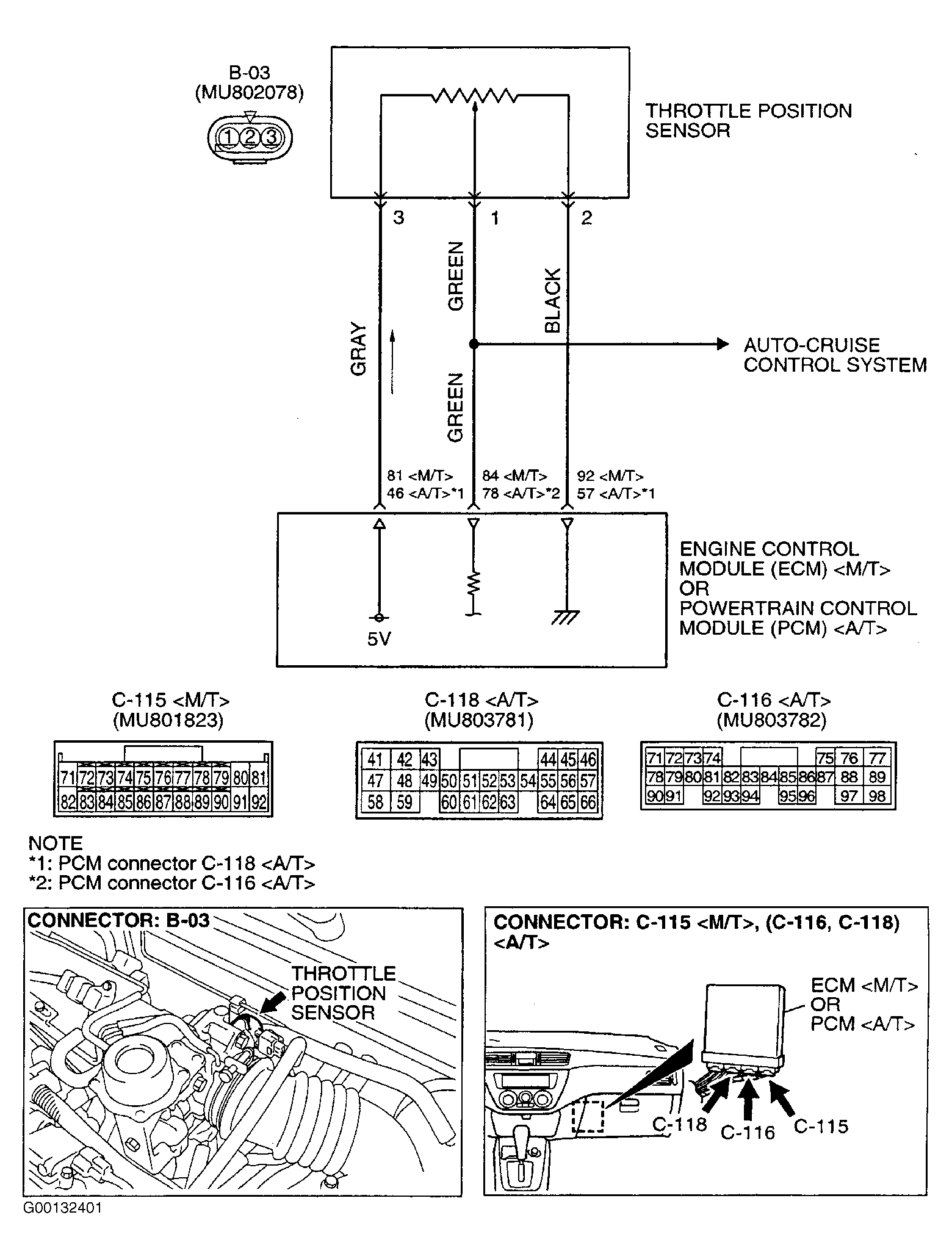

Fig 1: Identifying Throttle Position Sensor Circuit, Component & Connector Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
