DTC P0340: Camshaft Position Sensor Circuit: Notes

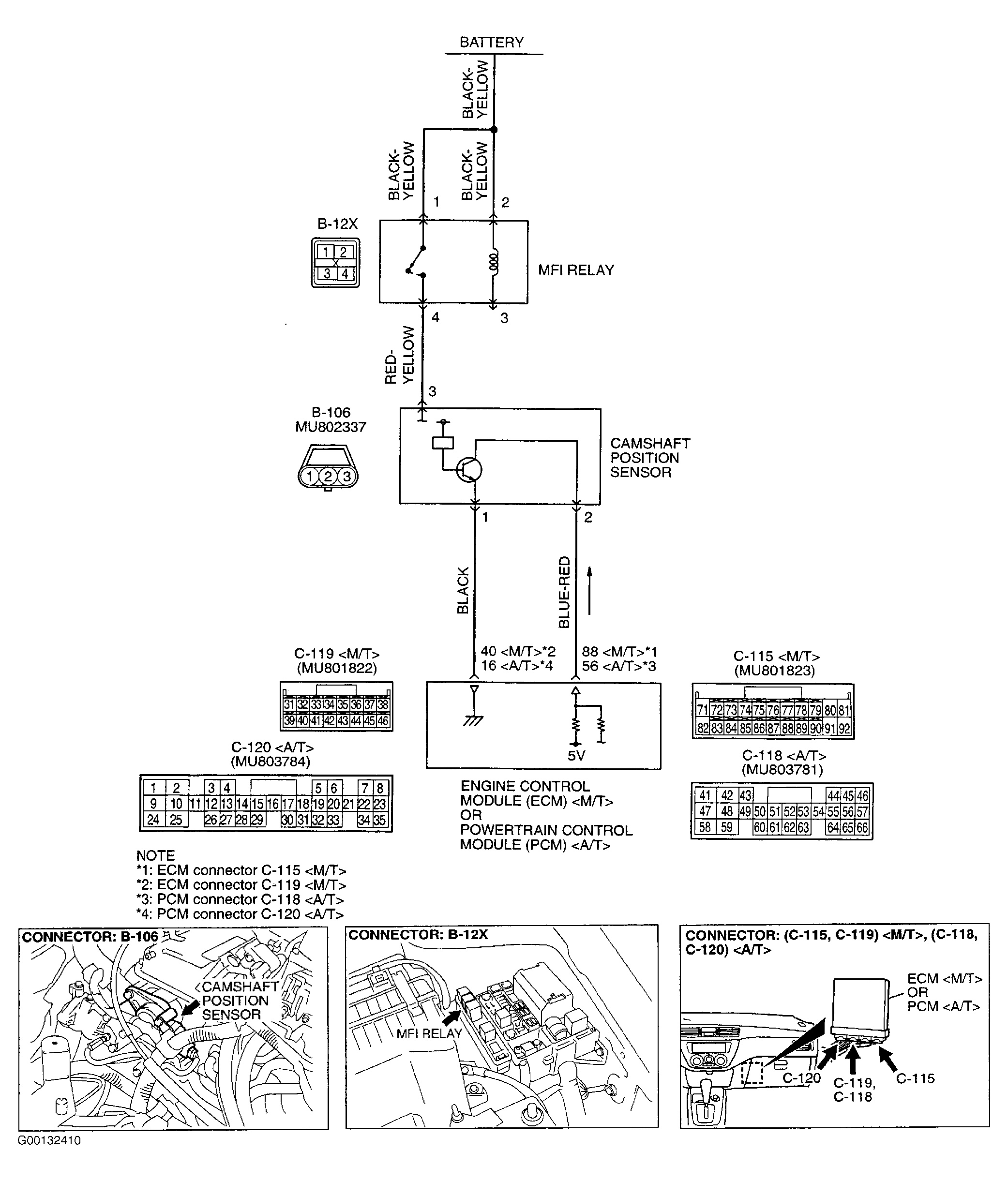

Fig 1: Identifying Camshaft Position Sensor Circuit, Component & Connector Location
G00132410Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
