Engine Controls - Self-Diagnostics
›
Diagnostic Tests
›
DTC P0401: EGR Flow Insufficient Detected
›
Notes
DTC P0401: EGR Flow Insufficient Detected: Notes

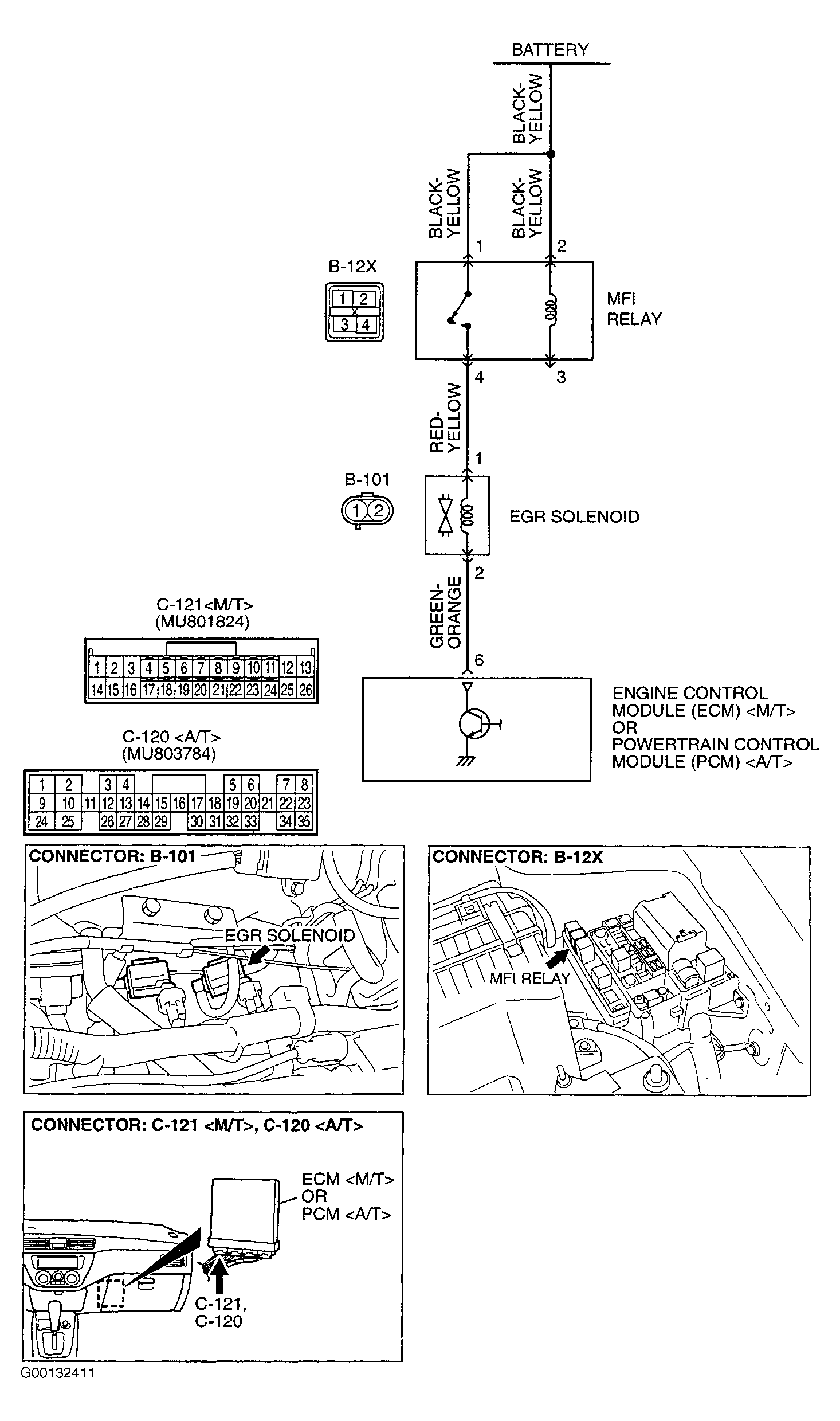

Fig 1: Identifying EGR Solenoid Circuit, Component & Connector Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
