DTC P0461: Fuel Level Sensor Circuit Range/Performance Fuel Gauge Unit Circuit: Notes

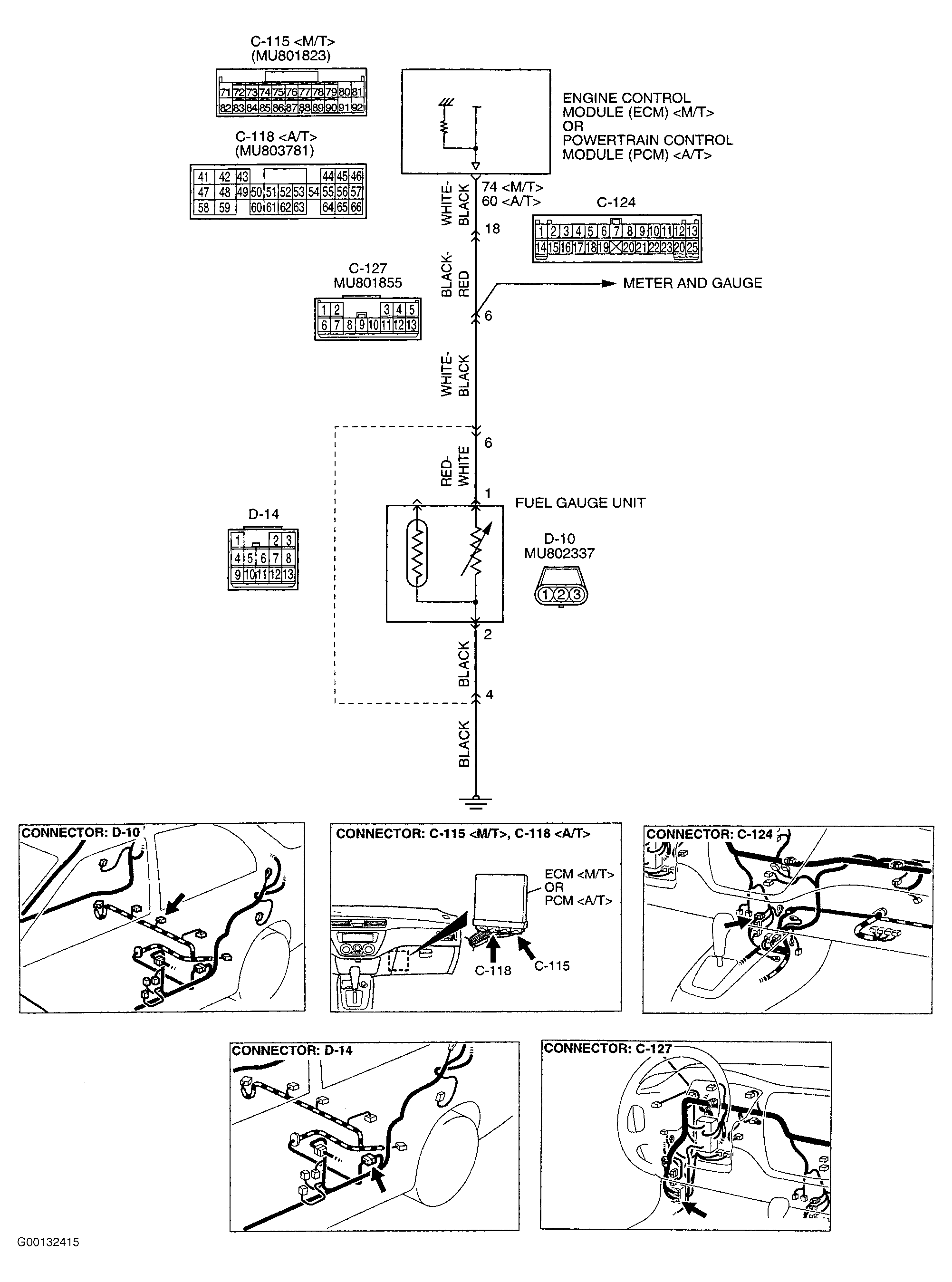

Fig 1: Identifying Fuel Level Sensor Circuit, Component & Connector Location
G00132415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
