DTC P0500: Vehicle Speed Sensor Circuit (M/T)
›
Notes
DTC P0500: Vehicle Speed Sensor Circuit (M/T): Notes

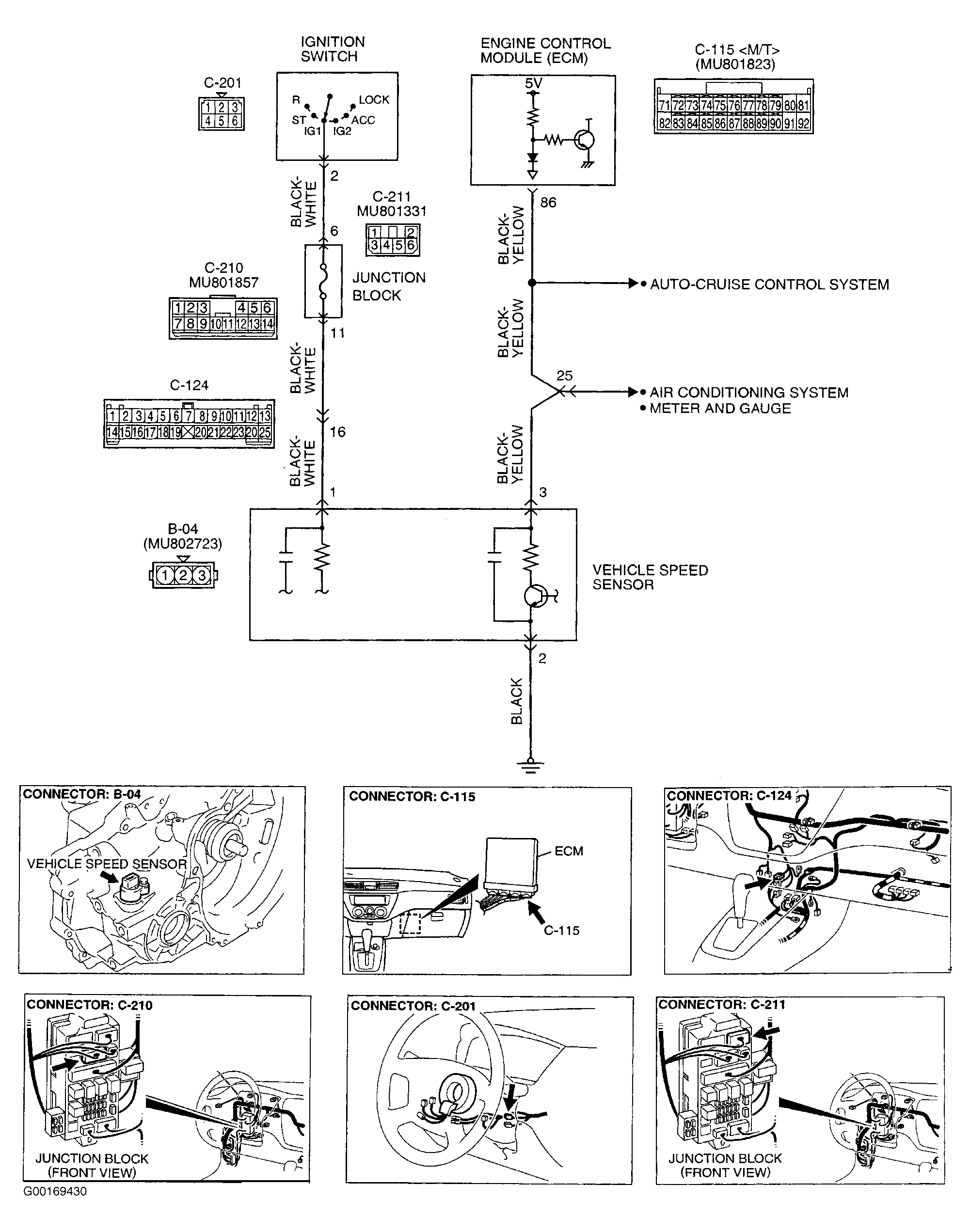

Fig 1: Identifying Vehicle Speed Sensor Circuit, Component & Connector Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
