Ignition Switch
WARNING: This page is about a different car, the 2001 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

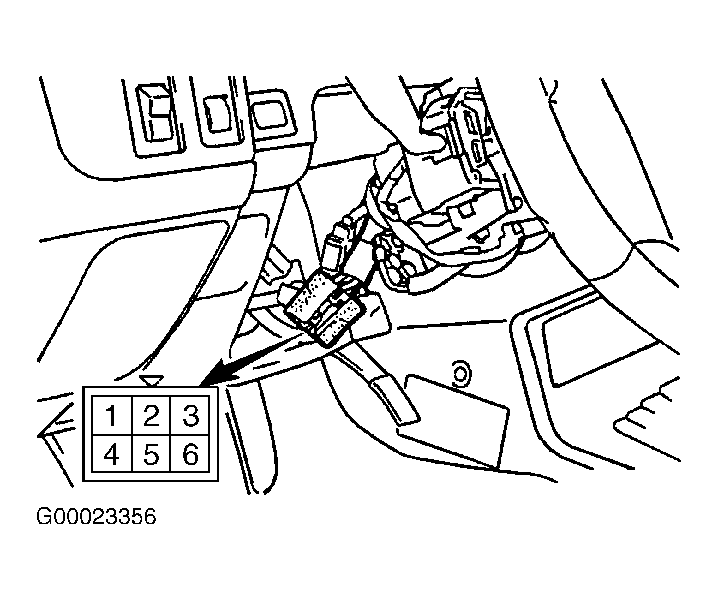

Remove driver's side instrument panel lower cover. Remove steering column upper and lower covers. Disconnect ignition switch 6-pin connector. While turning ignition switch through all positions, check for continuity between indicated ignition switch connector terminals. See IGNITION SWITCH CONTINUITY TEST table. See Fig 1 . If continuity does not exist as indicated, replace ignition switch.
IGNITION SWITCH CONTINUITY TEST
| Ignition Switch Position | Check For Continuity Between Connector Terminals No. | ||
|---|---|---|---|
| LOCK | (1) | ||
| ACC | 1 & 6 | ||
| ON | 1, 2, 4 & 6 | ||
| START | 1, 2 & 5 | ||
|
|||
