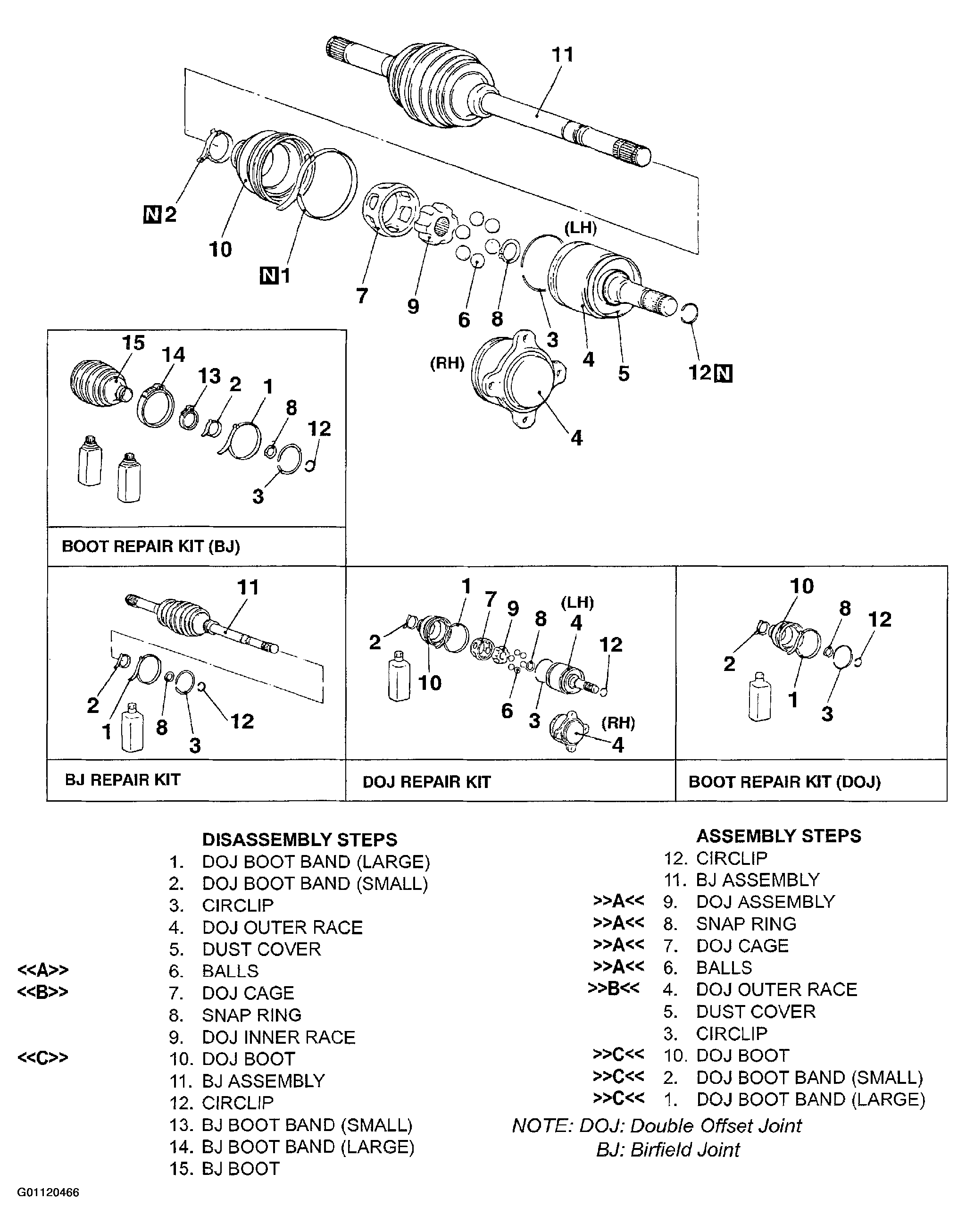

Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Never disassemble the BJ assembly except when replacing the BJ boot.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
DOJ: Double Offset Joint BJ: Birfield Joint
Required Special Tool:
- MB991561: Boot Band Crimping Tool
