Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

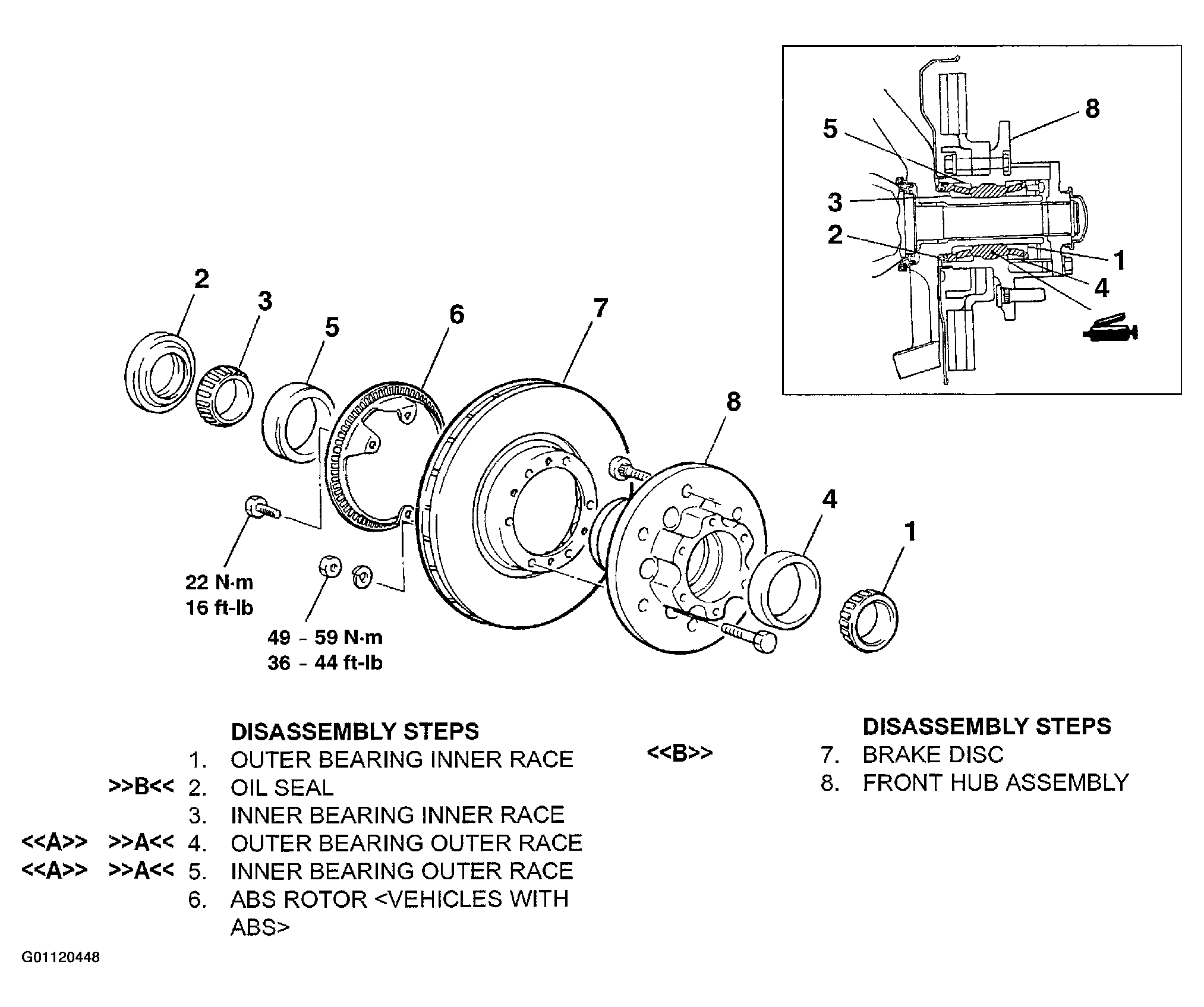

Fig 1: Exploded View Of Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990935: Installer Adapter
MB990938: Bar
MB990939: Brass Bar
MB990955: Oil Seal Installer
