Removal And Installation: Notes

WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

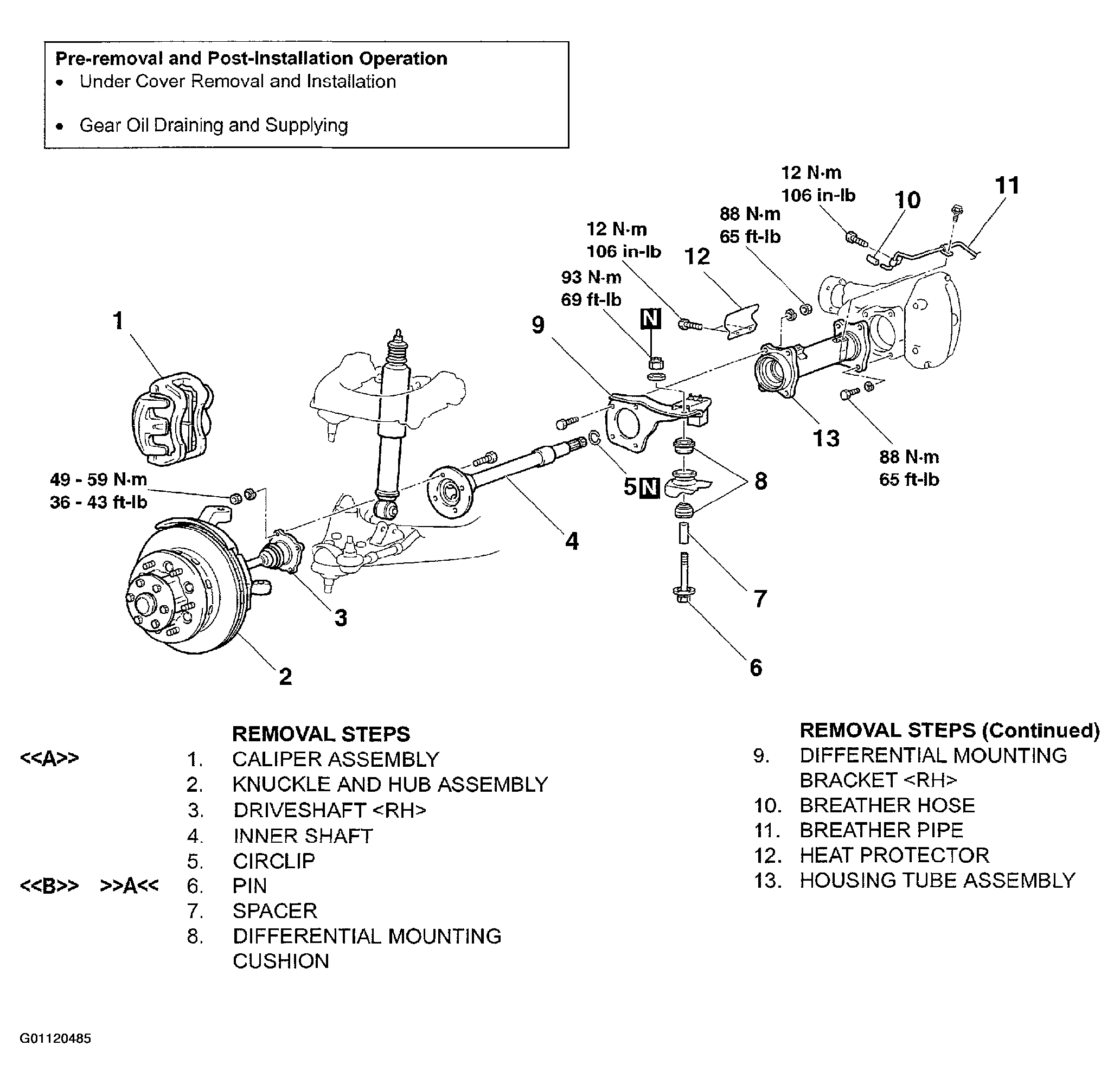

Fig 1: Removing & Installing Inner Shaft Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990211: Sliding Hammer
MB990906: Driveshaft Attachment
